ON Semiconductor CAT5171TBI-00GT3 Digital Potentiometer

The CAT5171TBI-00GT3 is a high-performance digital potentiometer manufactured by ON Semiconductor, designed to offer precision and reliability in a wide range of electronic applications. This digital potentiometer, also known as a digipot, serves as an ideal solution for adjusting and controlling voltage, current, and signal levels within electronic circuits.

This particular model features a single channel with a 100kΩ resistance value, which provides a fine adjustment capability. It utilizes a 256-position linear taper potentiometer, allowing for smooth and precise adjustments. The CAT5171TBI-00GT3 operates with a supply voltage ranging from 2.7V to 5.5V, making it compatible with a variety of low-voltage applications.

One of the key benefits of this digital potentiometer is its non-volatile memory, which ensures that the last position of the wiper is stored even when the power is turned off. This feature is particularly useful for applications that require the potentiometer to retain its setting between power cycles.

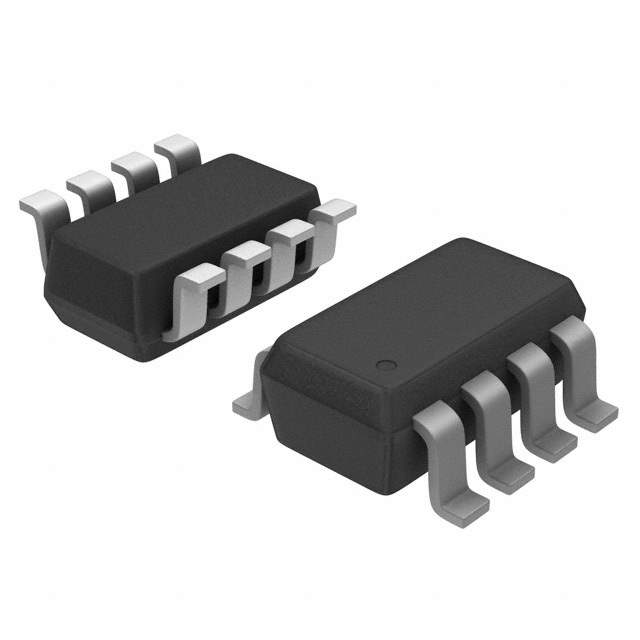

Communication with the CAT5171TBI-00GT3 is achieved through an I²C compatible interface, which simplifies the integration into digital systems and allows for easy adjustment via a microcontroller or processor. The compact 8-lead TSSOP package of the potentiometer ensures that it can be easily integrated into space-constrained designs.

Applications for the CAT5171TBI-00GT3 digital potentiometer are diverse and include settings such as automated calibration, audio level control, and feedback systems. Its robust design and precision make it suitable for use in consumer electronics, industrial control systems, and communication devices.

Overall, the ON Semiconductor CAT5171TBI-00GT3 digital potentiometer stands out for its reliability, ease of use, and versatility, making it an excellent choice for designers looking to add adjustable resistance functionality to their electronic projects.
