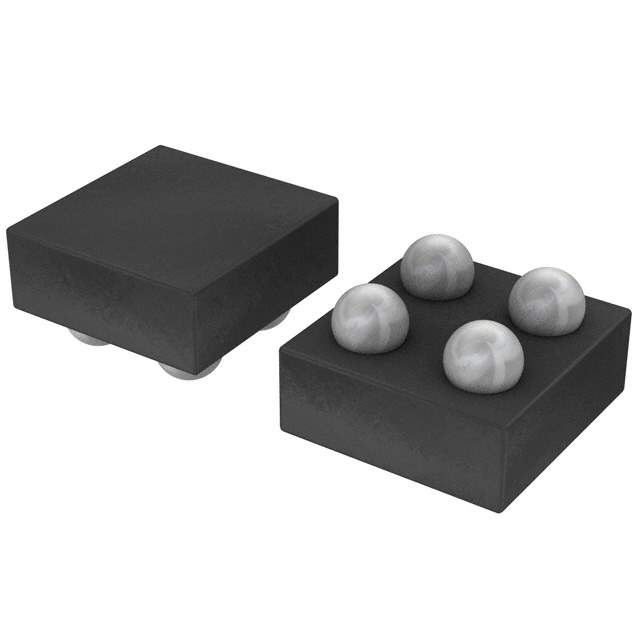

ON Semiconductor CAT24C04C4ATR EEPROM

The CAT24C04C4ATR is a high-quality EEPROM (Electrically Erasable Programmable Read-Only Memory) device from ON Semiconductor, a leading manufacturer in the semiconductor industry. This memory chip offers a 4-Kb (kilobit) storage capacity, making it suitable for storing small amounts of data that must be preserved during power cycles.

This particular EEPROM utilizes the standard I2C (Inter-Integrated Circuit) serial interface for communication, which allows for easy integration into most microcontroller-based systems. With a wide operating voltage range of 1.7V to 5.5V, the CAT24C04C4ATR is versatile and can be used in a variety of applications, from industrial to consumer electronics.

The CAT24C04C4ATR comes in a compact 8-pin TSSOP (Thin Shrink Small Outline Package) form factor, which is ideal for space-constrained applications. The device also features a hardware write protection pin, which prevents accidental data alteration during operation. This ensures data integrity and reliability, which is crucial for sensitive applications.

ON Semiconductor has designed the CAT24C04C4ATR with a 100-year data retention capability and support for over one million write cycles, making it a highly durable and reliable choice for data storage needs. This endurance, combined with its low-power consumption, makes it an excellent option for portable and battery-powered devices.

The device also includes an internally organized structure of 512 x 8 bits, which allows for efficient data management and retrieval. Additionally, the CAT24C04C4ATR supports a maximum clock frequency of 400 kHz (I2C Fast-mode), enabling quick data transfer when required.

In summary, the CAT24C04C4ATR from ON Semiconductor is a robust and reliable EEPROM solution that offers a blend of compactness, high storage capacity, and energy efficiency. Its ease of integration, coupled with ON Semiconductor's reputation for quality, makes it a top choice for designers looking to incorporate non-volatile memory into their electronic designs.
