ON Semiconductor CAT24C02H EEPROM Overview

The CAT24C02H from ON Semiconductor is a high-performance CMOS serial EEPROM memory device with a storage capacity of 2-Kb (256 x 8 bits). This EEPROM is part of the Catalyst series and offers designers a flexible data storage solution with low power requirements, making it ideal for a wide range of applications, from portable devices to complex industrial systems.

Key Features

• Memory Size: The CAT24C02H provides a 2-Kilobit (256 x 8) memory size, allowing for efficient storage of configuration data, serial numbers, calibration data, and more.
• I²C Interface: It features a fast I²C (Inter-Integrated Circuit) interface, which supports standard (100 kHz), fast (400 kHz), and high-speed (1 MHz) operation modes for versatile communication possibilities.
• Write Protection: The device includes hardware write protection features. A write protect pin (WP) prevents accidental data overwrites and ensures data integrity during critical operations.
• Low-Power Consumption: Designed for low-power consumption, the CAT24C02H is suitable for battery-powered applications, contributing to longer battery life and reduced power costs.
• Wide Voltage Range: The operating voltage range of 1.7V to 5.5V allows the EEPROM to be used in systems with different power supply levels, enhancing its versatility.
• High Reliability: With its robust design, the device guarantees a data retention period of 100 years and supports 1 million write cycle endurance, ensuring the reliability of the stored data over time.

Applications

The CAT24C02H is suitable for various applications that require a reliable and flexible non-volatile memory solution. It is commonly used in:

• Consumer electronics such as smartphones, tablets, and wearables
• Industrial control systems
• Medical devices
• Automotive applications
• Networking equipment
• Smart cards

Quality and Support

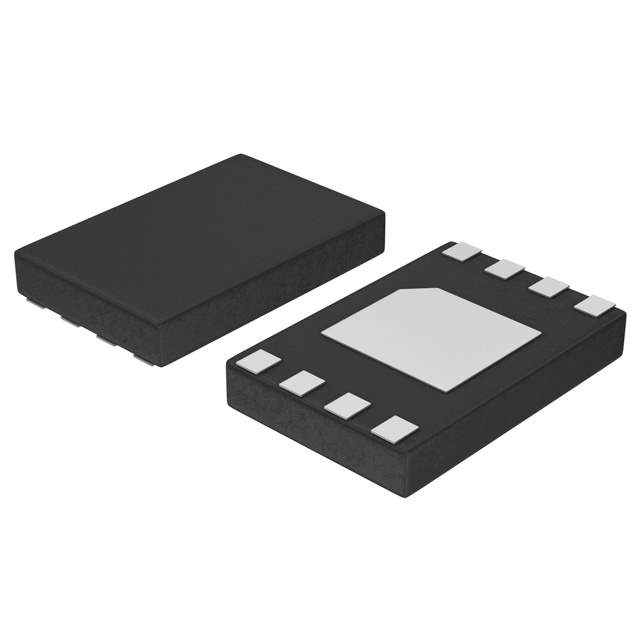

ON Semiconductor is known for its commitment to quality, and the CAT24C02H is no exception. It is available in several package options, including the industry-standard 8-lead PDIP, SOIC, TSSOP, and MSOP, providing flexibility in design. Technical support and comprehensive documentation are available to assist developers in integrating this EEPROM into their designs.
