Product Overview: 74LVT245MTC from ON Semiconductor

The 74LVT245MTC is a high-performance, low-voltage, bi-directional transceiver from ON Semiconductor, designed for asynchronous communication between data buses. It is part of the 74LVT family of products which are known for their robustness and efficiency in data transmission. This transceiver is specifically crafted to operate with a 3.3V power supply while maintaining 5V tolerant inputs, thereby providing a flexible interface solution between 3.3V and 5V logic systems.

Key Features

• Bi-Directional Interface: The device allows data flow in both directions, featuring separate input and output pins for each bus, which can be used concurrently without the need for direction control.
• Low-Voltage Operation: The 74LVT245MTC operates at a nominal voltage of 3.3V, making it suitable for low-voltage applications that require efficient power consumption.
• 5V Tolerant Inputs: Inputs can handle up to 5V, allowing the device to be used in mixed-voltage environments without the risk of damage.
• High Drive Capability: With 64 mA output drive capability at 3.3V, this device can drive a significant load, making it ideal for driving capacitive loads or multiple receivers.
• Bus Hold Feature: The bus hold feature prevents floating inputs and ensures stable operation without the need for external pull-up or pull-down resistors.

Applications

The 74LVT245MTC is versatile and can be used in a variety of applications. It is particularly suitable for interfacing between different logic levels in a mixed 3.3V/5V system. It can be found in:

• Microprocessor or microcontroller-based systems
• Data communication and telecommunication systems
• Computers and peripherals
• Networking equipment

Package and Quality

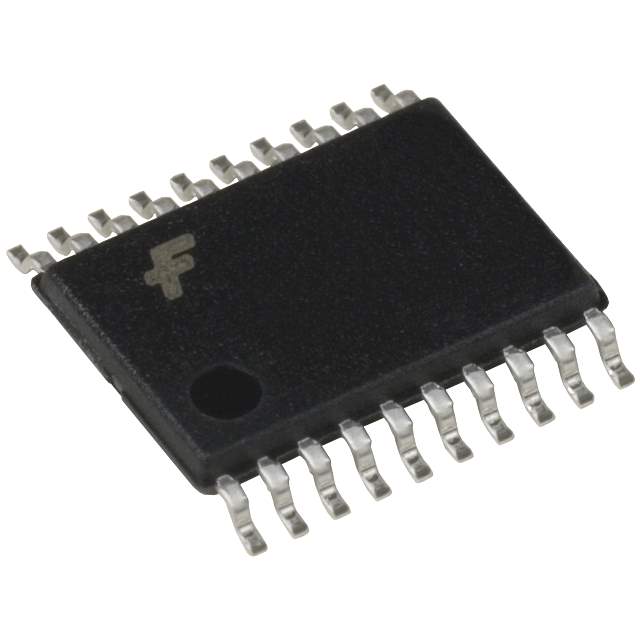

Packaged in a 20-pin TSSOP (Thin Shrink Small Outline Package), the 74LVT245MTC is designed for space-saving on PCBs while providing excellent thermal performance. ON Semiconductor ensures high-quality standards, and this product is compliant with the RoHS directive, making it a reliable and environmentally friendly choice for electronic systems.
