Products specifications Report Issue?

Categories Isolators
Manufacturer ON Semiconductor
Packaging Tube
Status Obsolete
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Minimum) 500% at 10mA
Turn On / Turn Off Time 5μs, 100μs (Maximum)
Input Type DC
Output Type Darlington with Base
Maximum Output Voltage 30V
Current - Output / Channel 150mA
Voltage - Forward (Vf) 1.2V
Current - DC Forward (If) (Maximum) 80mA
Vce Saturation (Maximum) 1V
Temperature Range - Operating -55°C ~ 100°C
Mounting Style Through Hole
Manufacturer Package 6-DIP (0.400", 10.16mm)
Supplier Device Package 6-DIP
Family Part Number 4N33
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1128858-4N33300W
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Balance

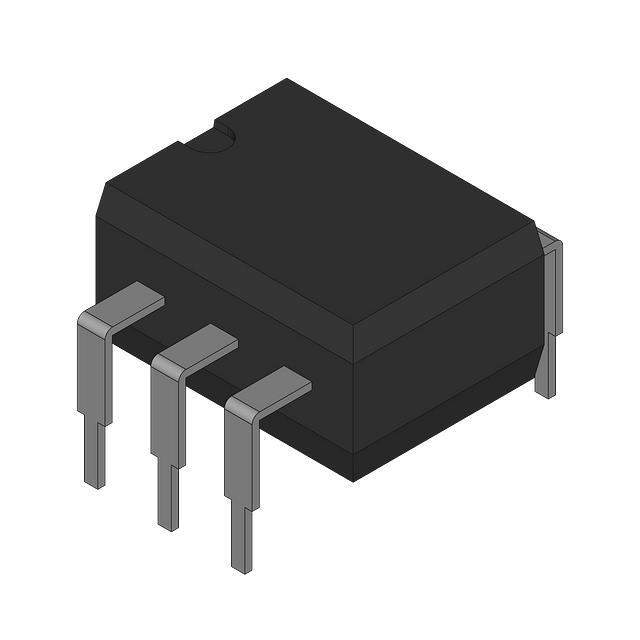

Ultra Librarian 3D Model Ultra Librarian 4N33300W CAD Model

Description

The ON Semiconductor 4N33-300W is a versatile and robust optocoupler device designed for applications that require high-voltage insulation and signal transfer via optical coupling. This optoelectronic component is a critical asset for systems that need to maintain electrical isolation between input and output while ensuring signal integrity.

Key Features

  • High Voltage Isolation: The 4N33-300W offers a high isolation voltage between input and output, making it suitable for applications that handle high voltages, thus protecting users and sensitive equipment from electrical shocks.
  • Phototransistor Output: This device includes a phototransistor output that ensures a reliable and efficient transfer of signals from the input LED to the output side of the circuit.
  • Wide Operating Temperature Range: It operates effectively over a broad temperature range, ensuring consistent performance in diverse environmental conditions.
  • Industry Standard 6-Pin DIP Package: The 4N33-300W comes in a compact 6-pin DIP package, which is widely accepted and easy to integrate into various circuit designs.
  • High Current Transfer Ratio (CTR): This optocoupler boasts a high CTR, which ensures that the output signal is a strong representation of the input, resulting in accurate and reliable operation.

Applications

The ON Semiconductor 4N33-300W is ideal for a range of applications where electrical isolation is crucial. These include but are not limited to:

  • Industrial controls
  • Signal switching
  • Power supply regulators
  • Motor control circuits
  • Computer peripheral interfacing

Product Specifications

The 4N33-300W optocoupler operates with a forward current of 60mA, and a maximum collector-emitter voltage of 30V. Its power dissipation capabilities and fast switching times make it an excellent choice for a wide range of electrical applications that require reliable isolation and signal transmission.

In conclusion, the ON Semiconductor 4N33-300W optocoupler represents a reliable solution for designers looking to incorporate electrical isolation in their circuits without compromising on performance or flexibility.
