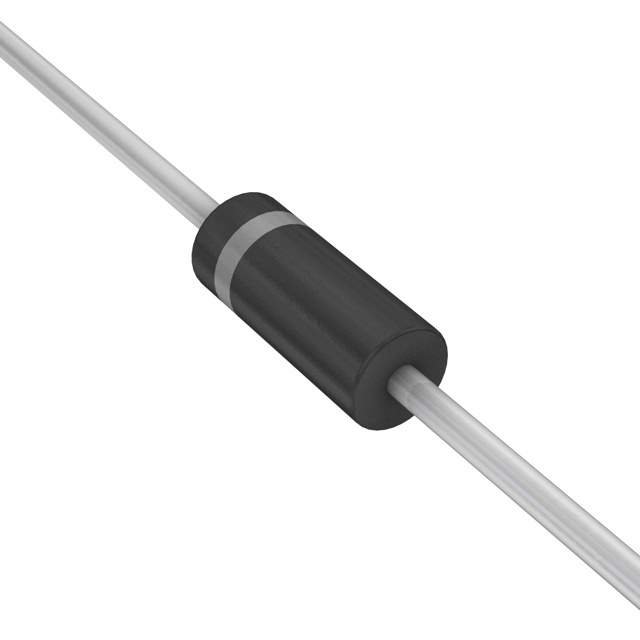

1N5360BRLG

Part No 1N5360BRLG
Manufacturer ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 25V 5W AXIAL
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 25V
Tolerance ±5%
Maximum Power Dissipation 5W
Impedance (Max) (Zzt) 4 Ohm
Current - Reverse Leakage @ Vr 500nA @ 19V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 1A
Temperature Range - Operating -65°C to 200°C
Mounting Through Hole
Case / Package Axial
Win Source Part Number 1002262-1N5360BRLG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1N5360BRLG CAD Model

Description

ON Semiconductor 1N5360BRLG Zener Diode

The 1N5360BRLG is a robust Zener diode produced by ON Semiconductor, renowned for its exceptional performance in voltage regulation and protection applications. This electronic component is designed to maintain a stable voltage level, making it an essential part of various electronic circuits. Its precise voltage regulation capabilities ensure that sensitive electronic components receive the correct operating voltage, safeguarding them from potential damage due to voltage fluctuations.

Key Features

  • Voltage Regulation: The 1N5360BRLG operates as a voltage regulator, providing a steady 25V nominal Zener voltage, which is ideal for various circuit designs requiring consistent voltage levels.
  • Power Dissipation: With a power dissipation of 5W, this Zener diode can handle significant amounts of power, making it suitable for high-power applications.
  • High Surge Capability: It is designed to endure surge conditions, offering a surge current specification that enhances its robustness in demanding situations.
  • Package: The diode comes in an axial-lead, transfer-molded plastic package that is not only compact but also offers excellent thermal performance and mechanical durability.
  • Environmental Compliance: The 1N5360BRLG is a Pb-free device and is RoHS compliant, minimizing the environmental impact and meeting global regulatory requirements.

Applications

The ON Semiconductor 1N5360BRLG Zener diode is versatile and can be used in a wide array of applications, including:

  • Voltage regulation modules in power supplies
  • Overvoltage protection circuits
  • Switching power supplies
  • Consumer electronics voltage stabilization
  • Industrial electronics

This Zener diode is a reliable choice for engineers and designers looking for a component that delivers consistent performance and can withstand the rigors of daily use in both commercial and industrial environments. The 1N5360BRLG by ON Semiconductor is a testament to the company's commitment to providing high-quality, durable, and environmentally friendly components for the electronics industry.
