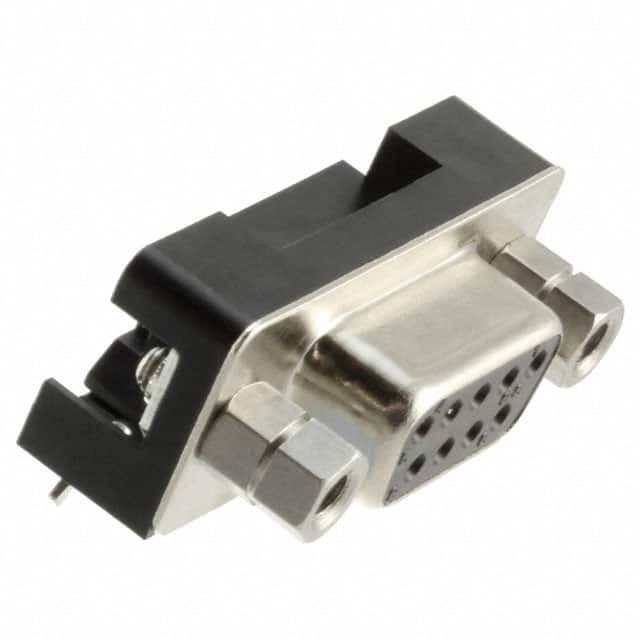

XM3B-0942-132LS
Same model may have multiple batches, images only for reference.

XM3B-0942-132LS

Part No XM3B-0942-132LS
Manufacturer Omron
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Omron
Series XM3B
Package Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Features Board Lock, Shielded
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Phosphor Bronze
Temperature Range - Operating -25°C ~ 105°C
Base Product Number XM3B
Standard Package 80 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 939819-XM3B-0942-132LS
Ultra Librarian 3D Model Ultra Librarian XM3B-0942-132LS CAD Model

Description

The XM3B-0942-132LS is a 9-position female socket connector assembly from Omron.

  • Series: XM3B series of D-sub connectors
  • Features: Board lock and a shielded design
  • Termination Style: Solder
  • Material: Phosphor bronze
  • Finish: Gold finish for good conductivity
  • Voltage Rating: 300V
  • Current Rating: 3A
  • Mounting Types: Panel mount, through hole, and right angle
  • Temperature Range: -25°C to 105°C
  • Package: Tray
  • Pieces per Package: 80
