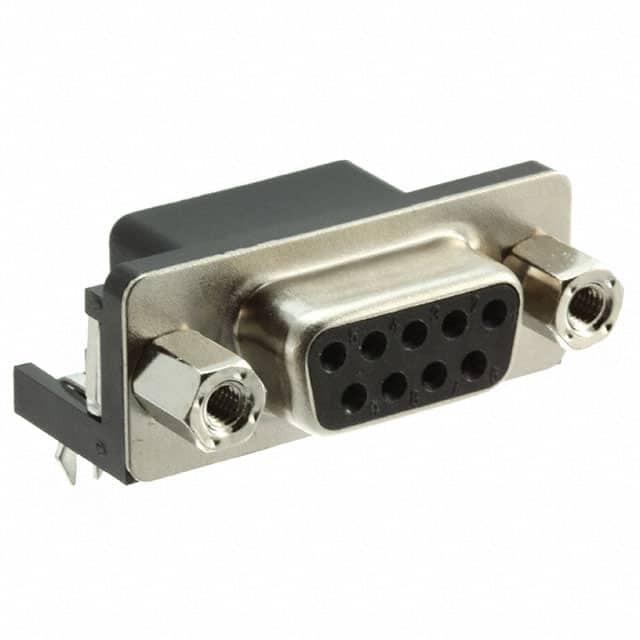

Part No XM3B-0942-112L
Manufacturer Omron
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Omron
Series XM3B
Package Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (M2.6)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Features Board Lock, Shielded
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Phosphor Bronze
Temperature Range - Operating -25°C ~ 105°C
Base Product Number XM3B
Standard Package 90 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 939816-XM3B-0942-112L
Ultra Librarian 3D Model Ultra Librarian XM3B-0942-112L CAD Model

Description

The Omron 939816-XM3B-0942-112L is a D-Sub Connector Assembly from the XM3B series from Omron.

  • Positions: 9
  • Color: Black
  • Features: Board lock and shielding
  • Connector Type: Receptacle with female sockets
  • Contact Type: Signal
  • Termination Style: Solder
  • Contact Finish: Gold
  • Voltage Rating: 300V
  • Temperature Range: -25°C to 105°C
  • Status: Obsolete, but a viable option for D-Sub connector needs
