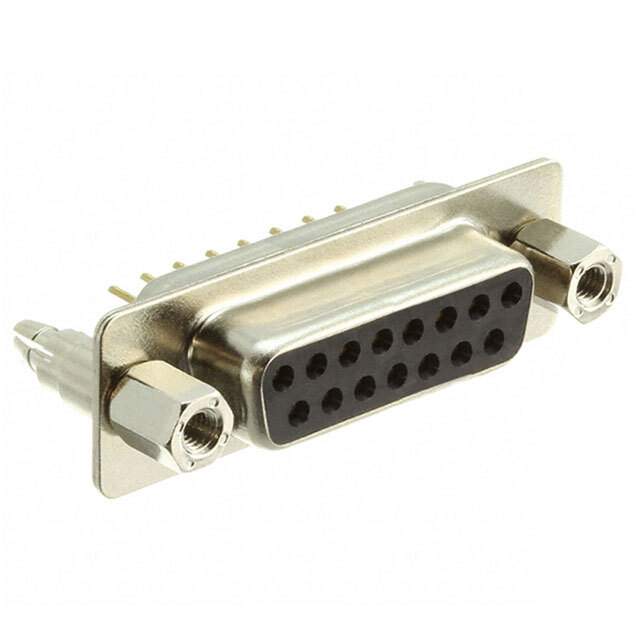

XM2F-1540-112L Real Image
Same model may have multiple batches, images only for reference.

XM2F-1540-112L

Part No XM2F-1540-112L
Manufacturer Omron
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 15POS VERT SLDR / 15 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (M2.6)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Features Board Lock, Shielded
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Phosphor Bronze
Temperature Range - Operating -25°C ~ 105°C
Base Product Number XM2F
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number XM2F1540112L,XM2F-1540-112L-ND,Z6507
Standard Package 70
Win Source Part Number 1333142-XM2F-1540-112L
Ultra Librarian 3D Model Ultra Librarian XM2F-1540-112L CAD Model

Description

The XM2F-1540-112L is a D-Sub connector assembly from Omron Electronics Inc-EMC Div.

  • Package: Tray
  • Positions: 15
  • Color: Black
  • Shielded: Yes, with board lock
  • Connector Type: Receptacle, female sockets
  • Contact Type: Signal
  • Rows: 2
  • Termination Style: Solder
  • Contact Finish: Gold, flash thickness
  • Wire Gauge: Not specified
  • Contact Form: Not specified
  • Connector Style: D-Sub
  • Voltage Rating: 300V
  • Standard Package: 70 pieces
  • Mounting Style: Through hole
  • Flange Feature: Mating side, female screwlock (M2.6)
  • Shell Material, Finish: Steel, nickel plated
  • Dielectric Material: Polybutylene terephthalate (PBT), glass filled
  • Shell Size, Connector Layout: 2 (DA, A)
  • Temperature Range: -25°C ~ 105°C
  • Current Rating: 3A
  • HTSUS Code: 8536.69.4040
