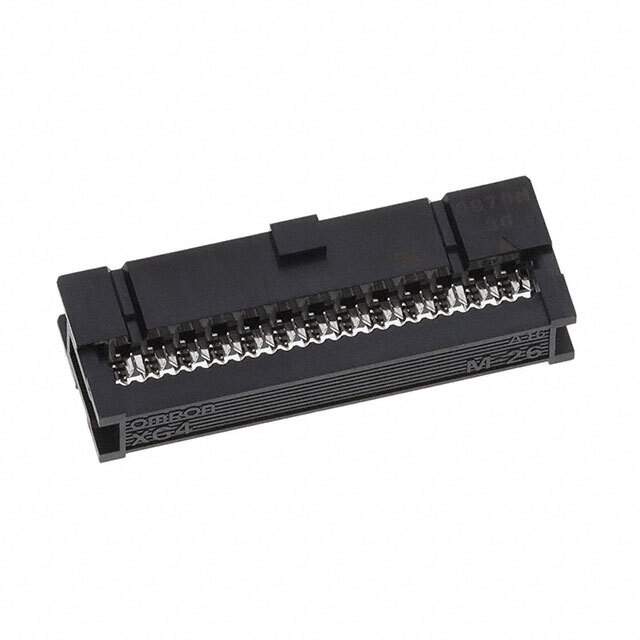

XG4M-2630

Part No XG4M-2630
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN RCPT 26POS IDC 28AWG GOLD / 26 Position Rectangular Receptacle Connector IDC Gold 28 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 26
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 28 AWG
Features Feed Through, Polarizing Key
Contact Finish Gold
Contact Finish Thickness 5.90µin (0.150µm)
Color Black
Base Product Number XG4M
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names OR918,XG4M-2630 BY OMZ,XG4M2630BYOMZ,XG4M-2630-ND,XG4M2630
Standard Package 80
Win Source Part Number 1000807-XG4M-2630
Ultra Librarian 3D Model Ultra Librarian XG4M-2630 CAD Model

Description

The XG4M-2630 is a 26-position rectangular connector that is perfect for free hanging and panel mount applications.

  • Pitch: 0.100" (2.54mm)
  • Color: black
  • Design: feed-through
  • Feature: polarizing key
  • Connector Type: receptacle
  • Contact Type: female sockets
  • Rows: two
  • Row Spacing: 0.100" (2.54mm)
  • Contact Finish: gold with a thickness of 5.90µin (0.150µm)
  • Wire Gauge: 28 AWG
  • Cable: ribbon cables
  • Temperature Range: -55°C to 85°C
  • Package: tray
