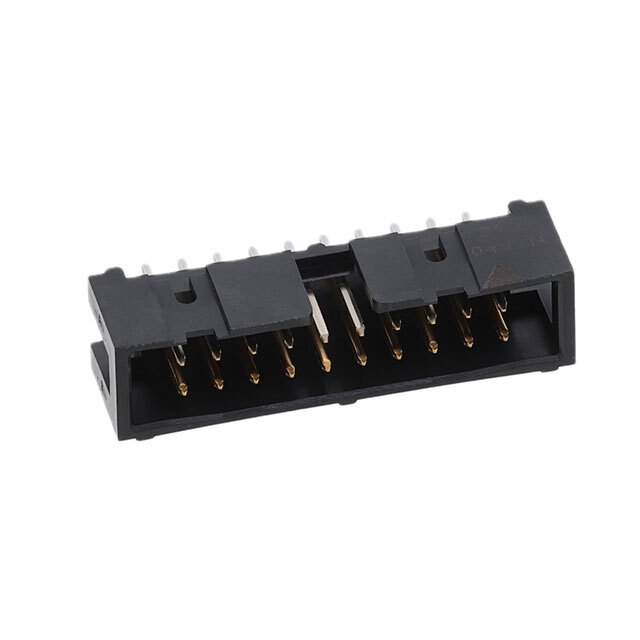

XG4C2031BYOMZ

Name: XG4C2031BYOMZ
Brand: Omron
SKU: 1314479
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	XG4C2031BYOMZ
Manufacturer	Omron
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Omron Electronics Inc-EMC Div
Series	XG4
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.126" (3.20mm)
Overall Contact Length	0.480" (12.19mm)
Insulation Height	0.335" (8.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	5.90µin (0.150µm)
Contact Finish - Post	Tin
Contact Material	Brass, Nickel
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	300V
Mated Stacking Heights	10.1mm, 19mm, 20.2mm
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	XG4C
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1314479-XG4C2031BYOMZ
Ultra Librarian 3D Model	Ultra Librarian XG4C2031BYOMZ CAD Model

Description

The Omron XG4C2031BYOMZ is a rectangular connector header component that has 20 positions.

Positions: 20
Pitch: 0.100" (2.54mm)
Keying: Keying Slot
Connector Type: Header
Contact Type: Male Pin
Number of Rows: 2
Termination: Solder
Mounting Type: Through Hole
Shrouding: Shrouded - 4 Wall
Temperature Range: -55°C ~ 105°C
