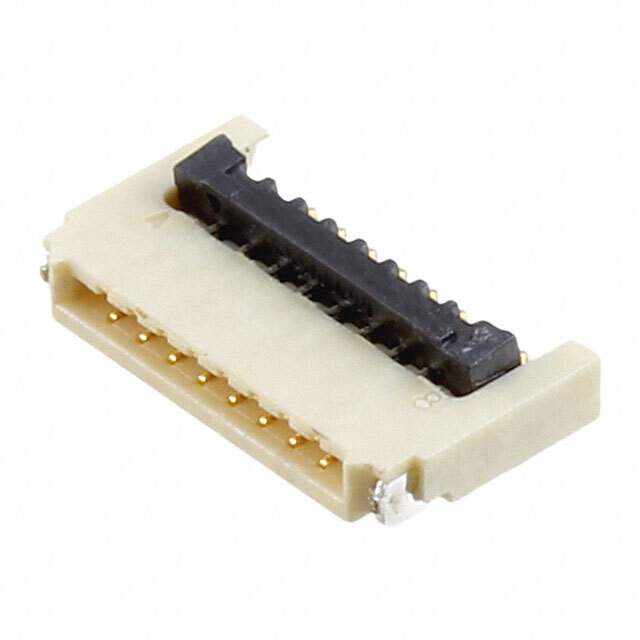

XF2U-0815-3A Real Image
Same model may have multiple batches, images only for reference.

XF2U-0815-3A

Part No XF2U-0815-3A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 8POS 0.50MM R/A / 8 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
XF2U-0815-3A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Omron Electronics Inc-EMC Div
Series XF2U
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 8
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 5.90µin (0.150µm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names XF2U-0815-3A-ND,XF2U-0815-3ACT,XF2U-0815-3ATR,2266-XF2U-0815-3A,XF2U08153A,-XF2U-0815
Standard Package 3,000
Win Source Part Number 999691-XF2U-0815-3A
Ultra Librarian 3D Model Ultra Librarian XF2U-0815-3A CAD Model

Description

The XF2U FPC connector from Omron Electronics Inc-EMC Div is a top and bottom contact type connector.

  • Positions: 8
  • Pitch: 0.020" (0.50mm)
  • Locking Feature: Rotary lock and backlock
  • Cable End Type: Tapered
  • Housing and Actuator Material: Liquid crystal polymer (LCP), Halogen-Free, UL94 V-0
  • Contact Finish: Gold with a thickness of 5.90µin (0.150µm)
  • Mounting Type: Surface mount right-angle
  • Voltage Rating: 50V
  • Height Above Board: 0.035" (0.88mm)
  • Mating Cycle: 20
  • Package: Tape & reel (TR) or Cut tape (CT)
  • Standard Package: 3,000 pieces
  • FFC, FCB Thickness: 0.20mm
  • Operating Temperature Range: -30°C ~ 85°C
