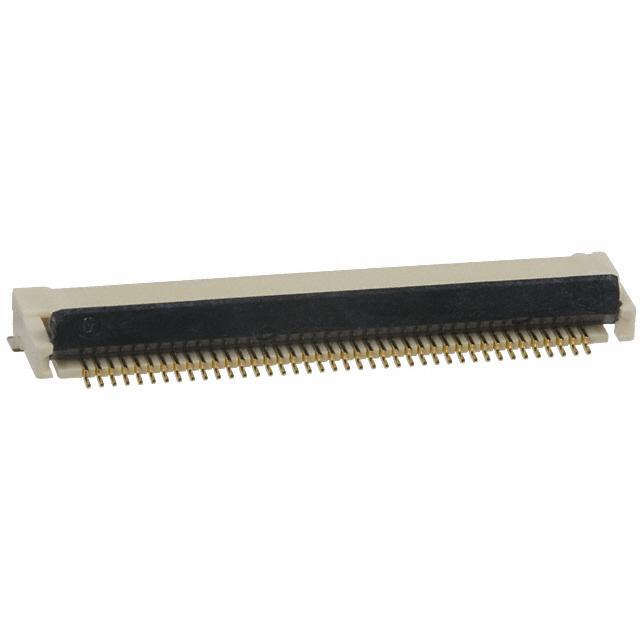

XF2M-4015-1A

Name: XF2M-4015-1A
Brand: Omron
SKU: 536664
Availability: InStock
Rating: 4.84 (222 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XF2M-4015-1A
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	Conn FPC Connector SKT 40 POS 0.5mm Solder RA SMD T/R / CONN FPC 40POS 0.50MM R/A
Datasheet	XF2M-4015-1A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Omron Electronics Inc-EMC Div
Packaging	Reel - TR
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	40
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.083" (2.10mm)
Locking Feature	Rotary Lock, Backlock
Cable End Type	Tapered
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating	50V
Temperature Range - Operating	-30°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Contact Finish Thickness	5.9μin (0.15μm)
Housing Color	Natural
Actuator Color	Black
Mating Cycles	20
Win Source Part Number	1119400-XF2M-4015-1A
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Industrial
Family Name	XF2M
Introduction Date	March 28, 2003
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian XF2M-4015-1A CAD Model

Description

The XF2M-4015-1A is a surface-mount, right-angle connector from Omron Electronics Inc-EMC Div.

Manufacturer: Omron Electronics Inc-EMC Div
Positions: 40
Pitch: 0.020" (0.50mm)
Voltage Rating: 50V
Current Rating: 0.5A
Locking Feature: Rotary lock and backlock
Cable End Type: Tapered
Housing Material: Liquid crystal polymer (LCP)
Actuator Material: Liquid crystal polymer (LCP)
Halogen-Free: Yes
Flammability Rating: UL94 V-0
Operating Temperature Range: -30°C to 85°C
