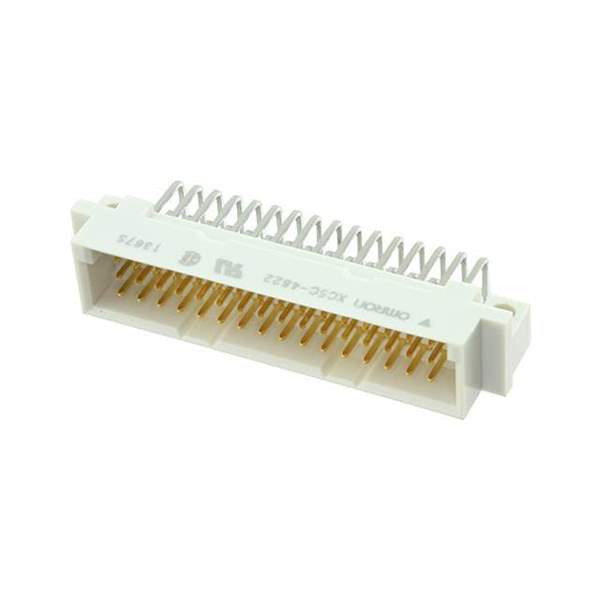

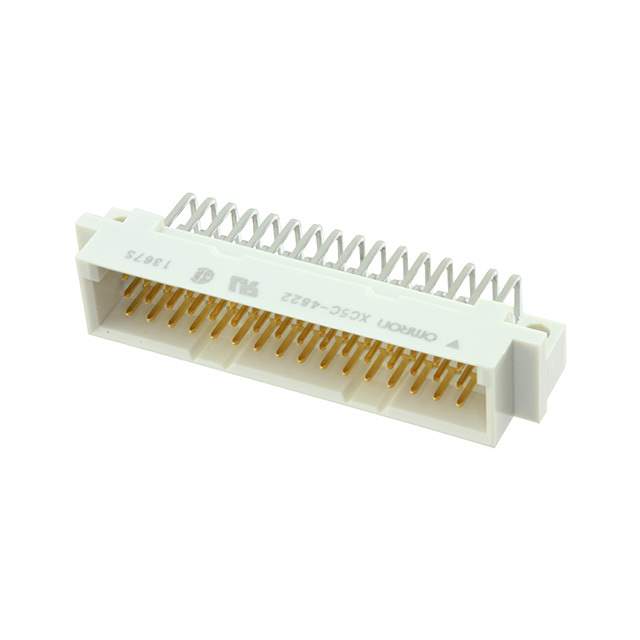

XC5C-4822 Real Image
Same model may have multiple batches, images only for reference.

XC5C-4822

Part No XC5C-4822
Manufacturer Omron
Catalog Backplane Connectors
Description CONN DIN PLUG 48POS PCB RA GOLD / 48 Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr Omron Electronics Inc-EMC Div
Series XC5
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Contact Finish Thickness 16.0µin (0.41µm)
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT) , Glass Filled
Base Product Number XC5C
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350647-XC5C-4822
Ultra Librarian 3D Model Ultra Librarian XC5C-4822 CAD Model

Description

The Omron XC5C-4822 is a DIN 41612 backplane connector with a pitch of 2.54mm.

  • Positions: 48
  • Connector Type: Plug with male pins
  • Series: XC5
  • Standard Package: 50
  • Manufacturer: Omron Electronics Inc-EMC Div
  • Current Rating: 2A
  • Operating Temperature: -55°C to 125°C
