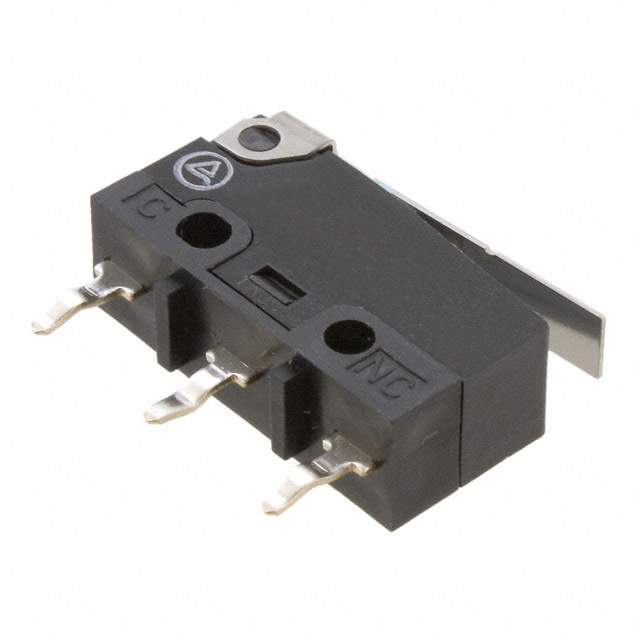

SSG-5L1P-5 Real Image
Same model may have multiple batches, images only for reference.

SSG-5L1P-5

Part No SSG-5L1P-5
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SUBMINIATURE BASIC SWITCH / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SSG
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 20gf
Release Force 2.000gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -25°C ~ 125°C
Operating Position 0.480" (12.2mm)
Electrical Life 200,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SSG-5
Other Names SSG-5L1P-5 BY OMZ,SSG5L1P5BYOMZ,SSG5L1P5
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233440-SSG-5L1P-5
Ultra Librarian 3D Model Ultra Librarian SSG-5L1P-5 CAD Model

Description

The Omron SSG-5L1P-5 is a limit switch with a solder lug termination style and SPDT circuit.

  • Termination Style: Solder Lug
  • Circuit: SPDT
  • Operating Force: 20gf
  • Electrical Life: 200,000 cycles
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.039" (1.0mm)
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -25°C ~ 125°C
