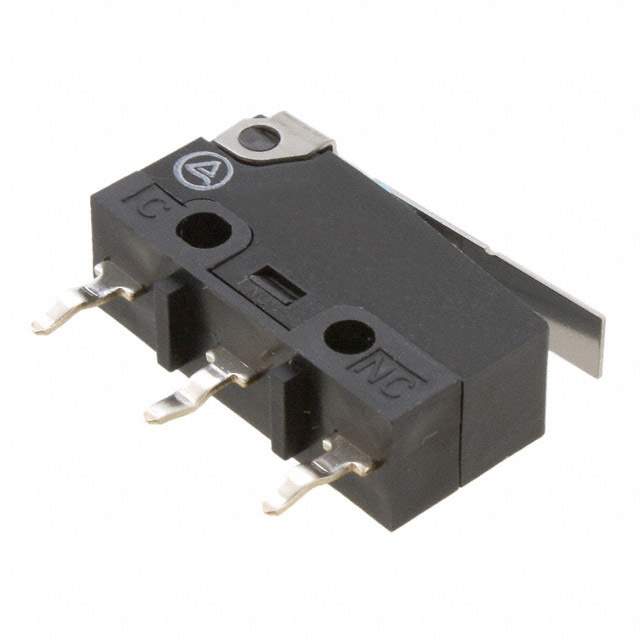

SSG-01L1P-5 Real Image
Same model may have multiple batches, images only for reference.

SSG-01L1P-5

Part No SSG-01L1P-5
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V  /  Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SSG
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 20gf
Release Force 2.039gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -25°C ~ 125°C
Operating Position 0.480" (12.2mm)
Electrical Life 200,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SSG-01
Other Names SSG01L1P5BYOMZ,SSG-01L1P-5 BYOMZ,SSG01L1P5,SSG-01L1P-5 BY OMZ
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233457-SSG-01L1P-5
Ultra Librarian 3D Model Ultra Librarian SSG-01L1P-5 CAD Model

Description

The Omron Electronics Inc-EMC Div limit switch has a voltage rating of 125 V AC and 30 V DC.

  • Circuit: SPDT
  • Actuator Type: Lever, Straight
  • Operating Force: 20gf
  • Mechanical Life: 10,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Release Force: 2.039gf
  • Ingress Protection: IP40
  • Package: Through-Hole
  • Termination Style: PC Pin
  • Operating Temperature: -25°C to 125°C
  • Packaging: Bulk
  • Standard Package: 500
