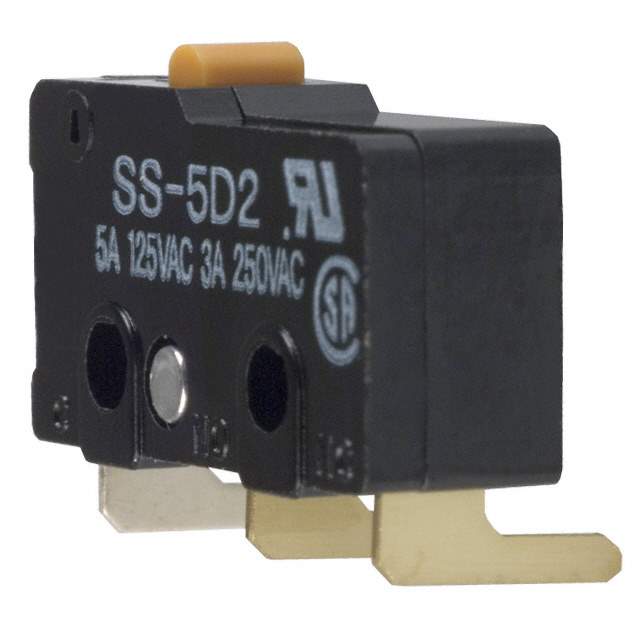

SS-5D2

Part No SS-5D2
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Through Hole, Right Angle
Datasheet
SS-5D2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP40
Operating Force 150gf
Release Force 25gf
Pretravel 0.020" (0.5mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SS5D2BYOMI,SS5M0035M,SS5D2,SS-5D2 BY OMI,SS-5D2,SW869
Standard Package 400
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233544-SS-5D2
Ultra Librarian 3D Model Ultra Librarian SS-5D2 CAD Model

Description

The 1233544-SS-5D2 is a limit switch from Omron Electronics Inc-EMC Div with a SPDT circuit and an operating force of 150gf.

  • Switch Function: On-Mom
  • Actuator Type: Round (Pin Plunger)
  • Termination Style: PC Pin
  • Mounting Type: Through Hole, Right Angle
  • Voltage Rating: 125 VAC
  • Current Rating: 5A (AC)
  • Ingress Protection: IP40
  • Mechanical Life: 30,000,000 cycles
