Same model may have multiple batches, images only for reference.

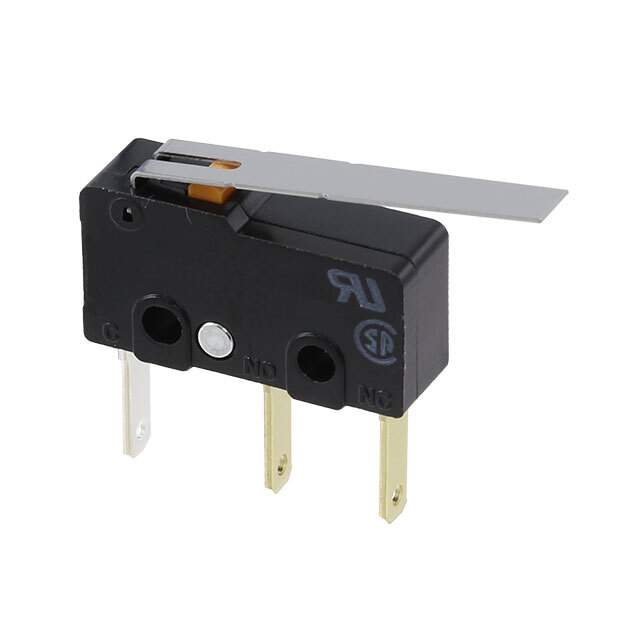

SS-01GL111-FT Real Image
Same model may have multiple batches, images only for reference.

SS-01GL111-FT

Part No SS-01GL111-FT
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Chassis Mount
Datasheet
SS-01GL111-FT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 12gf
Release Force 2.039gf
Differential Travel 0.047" (1.2mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS-01GL111-FT,SS01GL111FT,SS01GL111FTBYOMI,-SS-01GL111-FT,Z4540
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233575-SS-01GL111-FT
Ultra Librarian 3D Model Ultra Librarian SS-01GL111-FT CAD Model

Description

The Omron Electronics Inc-EMC Div SS-01GL111-FT is a limit switch with a Win Source Part Number of 1233575-SS-01GL111-FT.

  • Win Source Part Number: 1233575-SS-01GL111-FT
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, Straight
  • Electrical Life: 200,000 cycles
  • Operating Force: 12gf
  • Mechanical Life: 30,000,000 cycles
  • Release Force: 2.039gf
  • Differential Travel: 0.047" (1.2mm)
  • Overtravel: 0.047" (1.2mm)
  • Operating Position: 0.345" (8.8mm)
  • Voltage Rating: 125V (AC) and 30V (DC)
  • Current Rating: 100mA (AC/DC)
