Same model may have multiple batches, images only for reference.

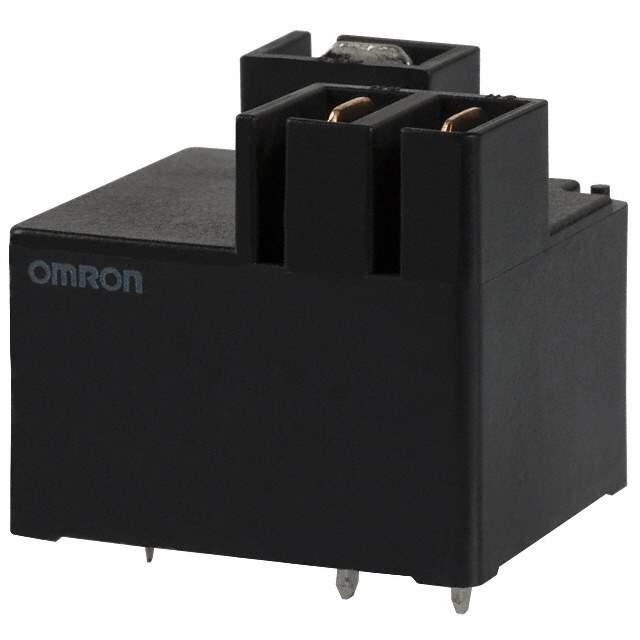

G8P-1CTP DC110 Real Image
Same model may have multiple batches, images only for reference.

G8P-1CTP DC110

Part No G8P-1CTP DC110
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 110V
Datasheet
G8P-1CTP DC110 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Series G8P
Packaging Bulk
Part Status Obsolete(EOL)
Relay Type General
Coil Type Non Latching
Coil Current 9mA
Coil Voltage 110VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 28VDC - Max
Turn On Voltage (Maximum) 82.5 VDC
Turn Off Voltage (Minimum) 11 VDC
Operate Time 15ms
Release Time 10ms
Features Insulation - Class F
Mounting Style Through Hole
Termination Style PC Pin, Quick Connect - 0.250" (6.3mm)
Contact Material Silver Cadmium Oxide (AgCdO)
Coil Power 900 mW
Coil Resistance 12.4 kOhms
Operating Temperature Range -55°C ~ 105°C
Win Source Part Number 792657-G8P-1CTP DC110
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G8P-1CTP DC110 CAD Model

Description

The Omron Electronics Inc-EMC Div G8P-1CTP DC110 relay is a general relay with a SPDT (1 Form C) contact form.

  • Contact Material: Silver Cadmium Oxide (AgCdO)
  • Coil Voltage: 110VDC
  • Coil Resistance: 12.4 kOhms
  • Mounting Type: Through Hole
  • Termination Style: PC Pin, Quick Connect-0.250" (6.3mm)
  • Maximum Switching Voltage: 250VAC, 28VDC
  • Contact Rating: 10A
  • Insulation Class: F
  • Operating Temperature Range: -55°C to 105°C
  • Status: Obsolete (EOL)
  • Popularity: Medium
