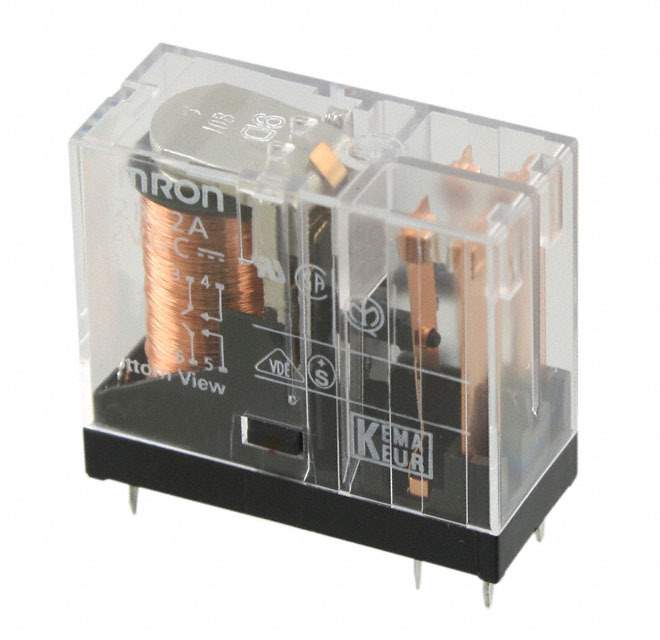

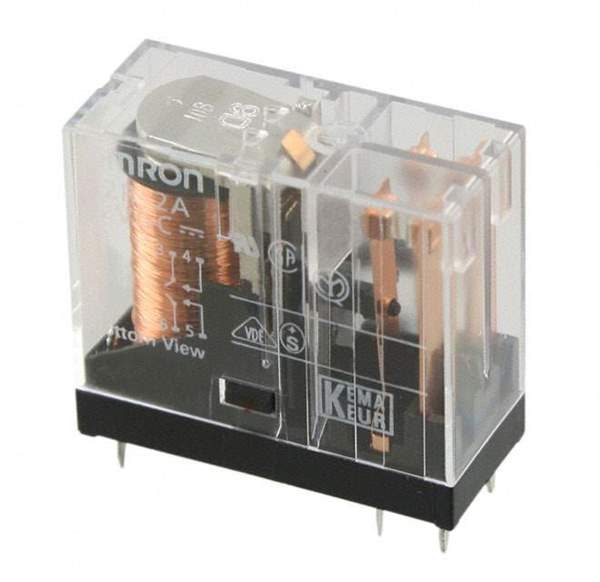

G2R-2A-DC24 Real Image
Same model may have multiple batches, images only for reference.

G2R-2A-DC24

Part No G2R-2A-DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description Electromechanical Relay 5VDC 5A DPST-NO(24.4x12.9x24.8)mm THT General Purpose Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 70 °C
Coil Current 21.8 mA
Coil Power 530 mW
Coil Resistance 1.1 kΩ
Coil Type Non-Latching
Coil Voltage (DC) 24 V
Contact Current Rating 5 A
Contact Material Silver
Current Rating 5 A
Depth 13 mm
Height 25.5 mm
Lead Free Yes
Length 29 mm
Max Current Rating 10 A
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 380 V
Max Voltage Rating (DC) 125 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Contacts 2
Number of Pins 6
Operate Time 15 ms
Power Rating 530 mW
REACH SVHC Unknown
Relay Type General Purpose
Release Time 5 ms
RoHS Compliant
Schedule B 8536490050, 8536490050
Switching Current 5 A
Termination PC Pin
Throw Configuration DPST
Voltage Rating (AC) 380 V
Weight 17 g
Width 13 mm
Win Source Part Number 1060148-G2R-2A-DC24
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G2R-2A-DC24 CAD Model

Description

The G2R-2A-DC24 is a general-purpose power relay manufactured by Omron.

  • Coil Voltage: It has a coil voltage of 24 VDC
  • Coil Resistance: a coil resistance of 1.1 kΩ.
  • Contacts: This relay has two contacts and can handle a current rating of 5 A.
  • Timing: The operate time of this product is 15 ms, and the release time is 5 ms.
  • Power Rating: The power rating of this product is 530 mW, and it has six pins.
  • Compliance: This product is RoHS compliant and lead-free, and it can operate @ a maximum temperature of 70 degrees Celsius.
  • Category: This product is in the Power Relays, Over 2 Amps category and is suitable for through-hole mounting.
