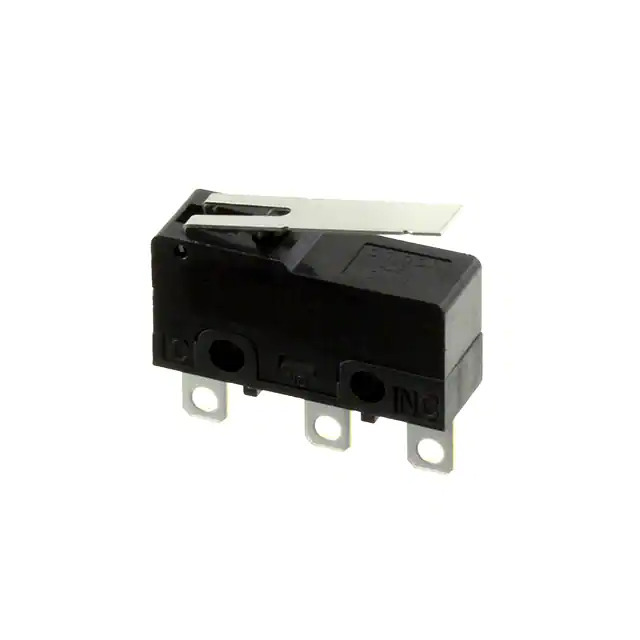

D2S-5L Omron
Same model may have multiple batches, images only for reference.

D2S-5L

Part No D2S-5L
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description MINIATURE BASIC SWITCH / Switch SPDT Chassis Mount
Datasheet
D2S-5L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2S
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Operating Force 150gf
Release Force 6.000gf
Operating Position 0.370" (9.4mm)
Pretravel -
Differential Travel 0.031" (0.8mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Electrical Life -
Mechanical Life -
Base Product Number D2S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1376171-D2S-5L
Ultra Librarian 3D Model Ultra Librarian D2S-5L CAD Model

Description

The D2S-5L is a limit switch from Omron Electronics Inc-EMC Div.

  • Series: D2S
  • Base Product Number: D2S
  • Current Rating: 5A (AC)
  • Ingress Protection: IP67
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Voltage Rating: 125V AC
  • Actuator Type: Lever, Straight
  • Mounting: Chassis Mount
  • Termination Style: Solder Lug
  • Operating Force: 150gf
  • Release Force: 6.000gf
  • Operating Position: 0.370" (9.4mm)
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.039" (1.0mm)
