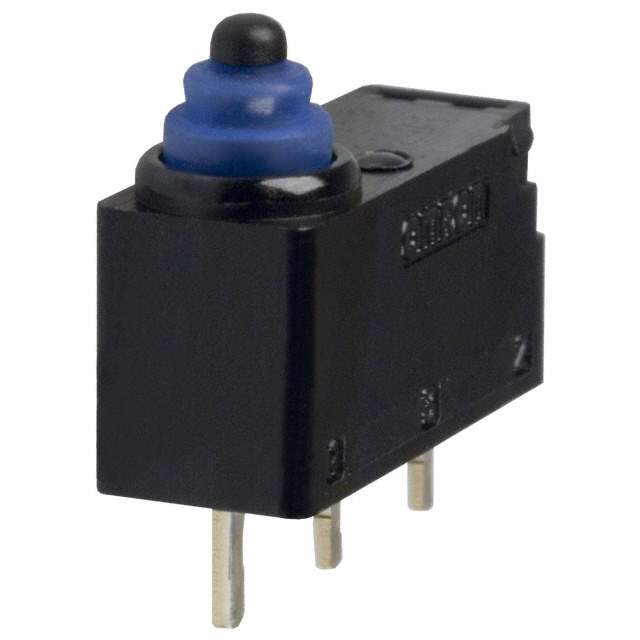

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2HW
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 12 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 76gf
Release Force 10gf
Differential Travel 0.010" (0.25mm)
Overtravel 0.055" (1.4mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.409" (10.4mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2HW
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Names SW716,D2HW-A201D BY OMR,D2HWA201DBYOMR,D2HWA201D
Standard Package 500
Win Source Part Number 1000162-D2HW-A201D
Ultra Librarian 3D Model Ultra Librarian D2HW-A201D CAD Model

Description

The Omron Electronics Inc-EMC Div D2HW-A201D is a SPDT switch with a round pin plunger actuator type. It has a voltage rating of 125 VAC and 12 VDC, and a current rating of 100mA (AC) and 2A (DC).

  • Switch Type: SPDT
  • Actuator Type: Round Pin Plunger
  • Voltage Rating: 125 VAC and 12 VDC
  • Current Rating: 100mA (AC) and 2A (DC)
  • Win Source Part Number: 1000162-D2HW-A201D
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Operating Force: 76gf
  • Mechanical Life: 1,000,000 cycles
  • Manufacturer: Omron Electronics Inc-EMC Div
