Same model may have multiple batches, images only for reference.

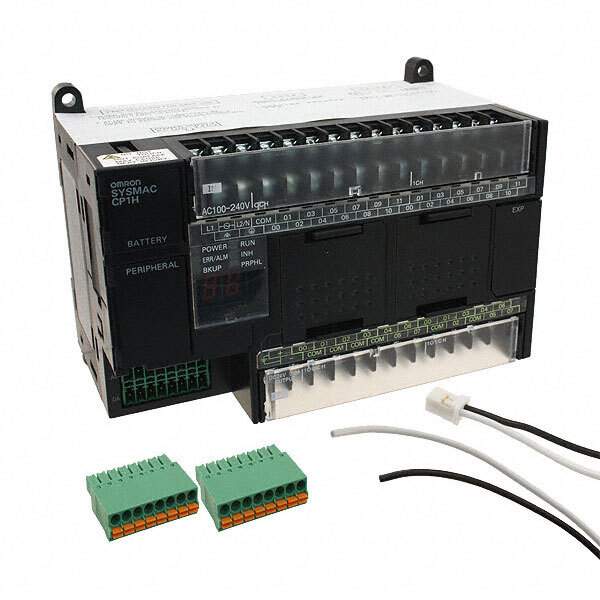

CP1H-XA40DR-A Real Image
Same model may have multiple batches, images only for reference.

CP1H-XA40DR-A

Part No CP1H-XA40DR-A
Manufacturer Omron
Catalog Controllers - Programmable (PLC, PAC)
Description CONTROL LOG 24 IN 16OUT 100-240V / Programmable Logic Controller (PLC) Chassis Mount, DIN Rail 100 ~ 240VAC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Controllers - Programmable (PLC, PAC)
Manufacturer Omron Automation and Safety
Packaging Box
Number of Inputs and Type 24 - Digital (20), Analog/Digital (4)
Number of Outputs and Type 16 - Analog (2), Relay (14)
Expandable 7 Modules Max
Voltage - Supply 100 ~ 240VAC
Display Type LED - Red Characters
Number Of Characters Per Row 2
Communications USB, Option Cards Available
Memory Size 32K Words
Mounting Chassis Mount, DIN Rail
Features Battery Backup
Temperature Range - Operating 0°C ~ 55°C
Software CX-One
Approval Agency CE, cULus, Lloyd, NK
Weight 1.7 lbs (771.1 g)
Base Product Number CP1H-XA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8537.10.9160
Other Part Number CP1HXA40DRA,CP1H-XA40DR-A-ND,Z3161
Standard Package 1
Win Source Part Number 1335088-CP1H-XA40DR-A
Ultra Librarian 3D Model Ultra Librarian CP1H-XA40DR-A CAD Model

Description

The Omron Automation and Safety CP1H-XA40DR-A Programmable Controller is a chassis mount or DIN rail mount controller with 24 digital inputs (20) and analog/digital (4) and 16 analog (2) and relay (14) outputs.

  • Product Name: CP1H-XA40DR-A
  • Manufacturer: Omron Automation and Safety
  • Mounting: Chassis mount or DIN rail mount
  • Digital Inputs: 24 (20 digital and 4 analog/digital)
  • Analog Outputs: 16 (2 analog)
  • Relay Outputs: 14
  • Memory Size: 32K words
  • Battery Backup: Yes
  • Display: Red LED display with 2 characters per row
  • Expansion: Up to 7 modules max
  • Communication: USB with option cards available
  • Voltage Supply: 100 ~ 240VAC
  • Operating Temperature: 0°C to 55°C
  • Approvals: CE, cULus, Lloyd, and NK approved
  • RoHS Compliant: Yes
  • Packaging: Box
  • Weight: 1.7 lbs (771.1g)
  • Software: CX-One
