Same model may have multiple batches, images only for reference.

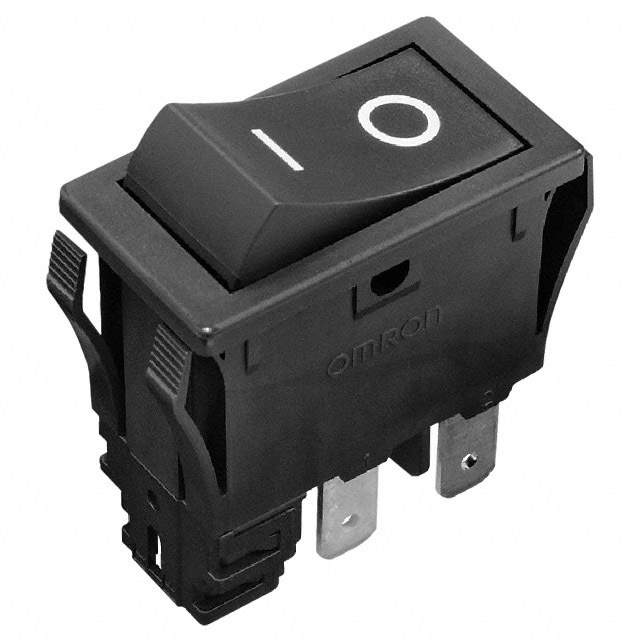

A8GS-D1380 Real Image
Same model may have multiple batches, images only for reference.

A8GS-D1380

Part No A8GS-D1380
Manufacturer Omron
Catalog Rocker Switches
Description SWITCH ROCKER DPST 16A 125V / Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr Omron Electronics Inc-EMC Div
Series A8GS
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 16A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking O I
Termination Style Quick Connect - 0.187" (4.7mm)
Panel Cutout Dimensions Rectangular - 27.70mm x 15.20mm
Temperature Range - Operating -10°C ~ 55°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number A8GS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2266-A8GS-D1380,A8GS-D1380-ND,Z12840,A8GSD1380
Standard Package 50
Win Source Part Number 1141392-A8GS-D1380
Ultra Librarian 3D Model Ultra Librarian A8GS-D1380 CAD Model

Description

The A8GS-D1380 is a DPST rocker switch from Omron Electronics Inc-EMC Div that has a quick connect - 0.187" (4.7mm) termination style.

  • Supply and Demand Status: Limited
  • Series: A8GS
  • Win Source Part Number: 1141392-A8GS-D1380
  • Standard Package: 50
  • Voltage Rating: 125V
  • Panel Cutout Dimensions: Rectangular - 27.70mm x 15.20mm
  • Switch Function: On-Off
  • Actuator Type: Concave (Curved)
  • Actuator/Cap Color: Black
  • Actuator Marking: O I
  • Mounting Type: Panel Mount and Snap-In
  • Operating Temperature: -10°C ~ 55°C
  • Electrical Life: 10,000 Cycles
  • Mechanical Life: 30,000 Cycles
  • Current Rating (Amps): 16A (AC)
