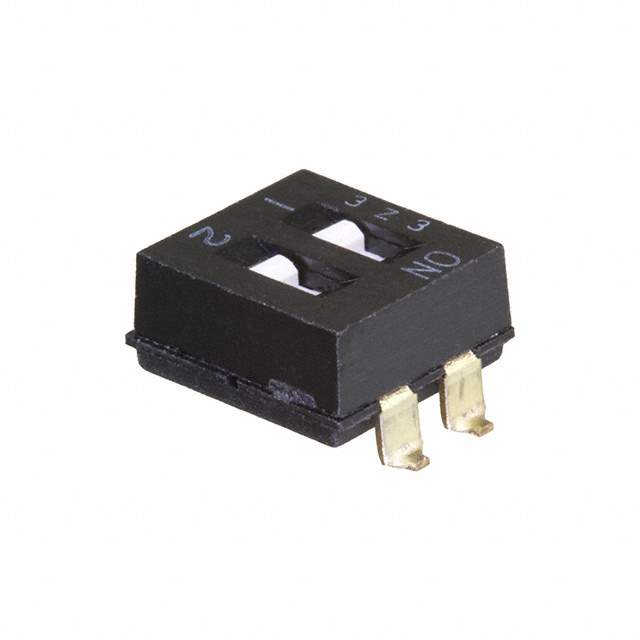

A6SN-2101 Real Image
Same model may have multiple batches, images only for reference.

A6SN-2101

Part No A6SN-2101
Manufacturer Omron
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6SN
Package Tube
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Height Above Board 0.175" (4.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -30°C ~ 85°C
Length 0.276" (7.00mm)
Electrical Life 1,000 Cycles
Base Product Number A6SN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names A6SN2101,SW1186
Standard Package 60
Win Source Part Number 1177855-A6SN-2101
Ultra Librarian 3D Model Ultra Librarian A6SN-2101 CAD Model

Description

The Omron A6SN is a DIP switch with 2 positions and a 0.100" (2.54mm) pitch.

  • Positions: 2
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull-wing
  • Washable: Yes
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.175" (4.45mm)
  • Length: 0.276" (7.00mm)
  • Actuator Type: Slide
  • Actuator Level: Flush and recessed
  • Temperature Range: -30°C ~ 85°C
  • Package: Tube
