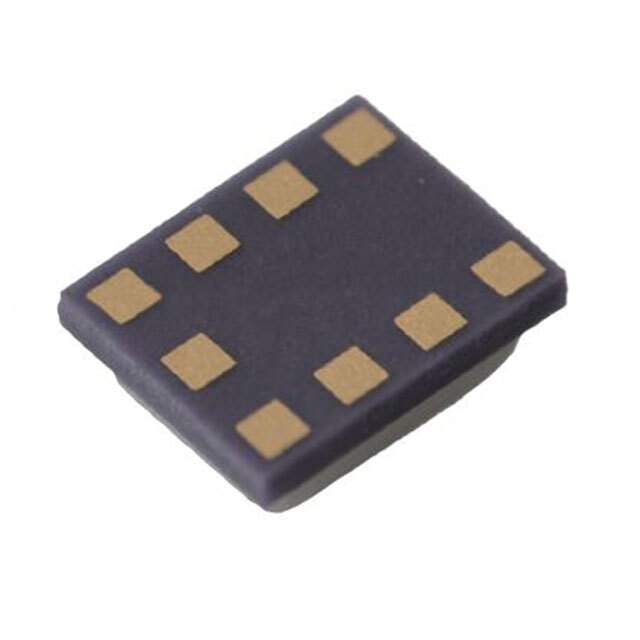

2SMPB-02E

Part No 2SMPB-02E
Manufacturer Omron
Catalog Pressure Sensors, Transducers
Description BAROMETRIC DGTL PRESS SENS 9LGA / Pressure Sensor 4.4PSI ~ 16.0PSI (30kPa ~ 110kPa) Absolute 24 b 9-VLGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Product Status Obsolete
Applications Board Mount
Pressure Type Absolute
Operating Pressure 4.4PSI ~ 16.0PSI (30kPa ~ 110kPa)
Output Type I2C, SPI
Output 24 b
Accuracy ±0.007PSI (±0.05kPa)
Voltage - Supply 1.71V ~ 3.6V
Port Style No Port
Features Temperature Compensated
Termination Style SMD (SMT) Tab
Maximum Pressure 116.03PSI (800kPa)
Temperature Range - Operating -40°C ~ 85°C
Case / Package 9-VLGA
Supplier Device Package 9-LGA (2.5x2)
Base Product Number 2SMPB
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number Z8215TR-ND,Z8215CT-ND,2266-2SMPB-02E,Z8215,39-2SMPB-02ECT,2SMPB02E,39-2SMPB-02ETR,Z8215CT,Z8215-ND,39-2SMPB-02EDKR
Standard Package 3,500
Win Source Part Number 1336486-2SMPB-02E
Ultra Librarian 3D Model Ultra Librarian 2SMPB-02E CAD Model

Description

Omron 2SMPB-02E is listed in the Pressure Sensors, Transducers category and is relevant for designs that need pressure monitoring or feedback in compact electronic systems. Engineers may evaluate parts in this class for industrial controls, HVAC equipment, consumer appliances, fluid or air management, and embedded sensing applications where stable signal acquisition and system-level reliability matter. As an Omron device, it may appeal to teams seeking components from an established manufacturer for prototype builds, maintenance sourcing, or ongoing production support. Exact electrical, mechanical, and environmental specifications should be confirmed in the official datasheet before design-in. Lifecycle status for 2SMPB-02E is currently information not available, so supply continuity should be reviewed before committing to new programs. RoHS compliance information is also not available from the provided data. For compliance-sensitive projects, engineers and procurement teams should verify current environmental declarations, material content, and shipment availability directly with Omron or an authorized distributor.
