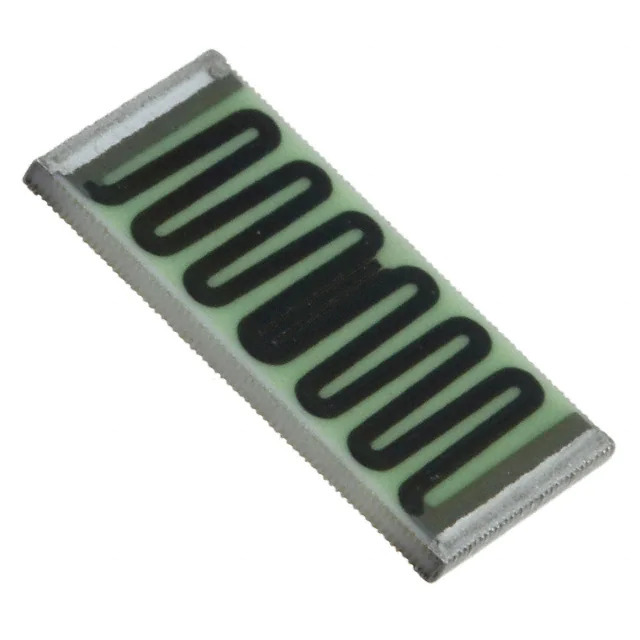

Same model may have multiple batches, images only for reference.
HVC4020V1004JET Ohmite
Same model may have multiple batches, images only for reference.

HVC4020V1004JET

Part No HVC4020V1004JET
Manufacturer Ohmite
Catalog Chip Resistor - Surface Mount
Description RES SMD 1M OHM 5% 1.5W 4020
Datasheet
HVC4020V1004JET Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Ohmite
Series HVC
Package Tape & Reel
Product Status Active
Resistance 1 MOhms
Tolerance ±5%
Power (Watts) 1.5W
Composition Thick Film
Features High Voltage
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Nonstandard
Supplier Device Package 4020
Size / Dimension 0.402" L x 0.201" W (10.20mm x 5.10mm)
Height - Seated (Max) 0.031" (0.80mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1378602-HVC4020V1004JET
Ultra Librarian 3D Model Ultra Librarian HVC4020V1004JET CAD Model

Description

The HVC4020V1004JET is a chip resistor that belongs to the HVC series by Ohmite.

  • Series: HVC
  • Type: High voltage resistor
  • Resistance: 1 MOhms
  • Power Rating: 1.5W
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Temperature Range: -55°C to 155°C
  • Package: Nonstandard package with dimensions of 0.402" L x 0.201" W (10.20mm x 5.10mm) and a seated height of 0.031" (0.80mm)
  • Construction: Thick film resistor
  • Terminations: Two
