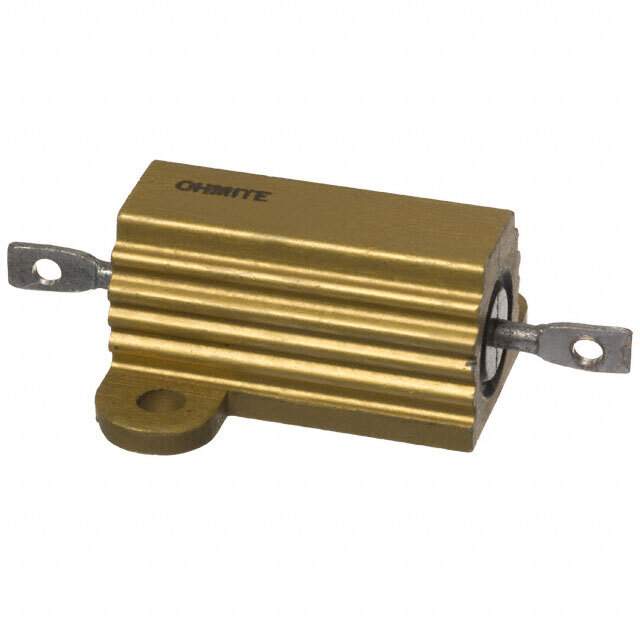

HS503KF Real Image
Same model may have multiple batches, images only for reference.

HS503KF

Part No HS503KF
Manufacturer Ohmite
Catalog OEM Parts (F - I)
Description Res Wirewound 3K Ohm 1% 14/50W ±25ppm/C Aluminum Housed AXL Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Composition Wirewound
Height 14.8082 mm
Housing Material Aluminium
Lead/Base Style Solder
Length 49.0982 mm
Max Power Dissipation 50 W
Resistance 3 kΩ
RoHS Compliant
Temperature Coefficient 25 ppm/°C
Tolerance 1 %
Width 14.1986 mm
Win Source Part Number 1063499-HS503KF
Categories OEM Parts(F-I)
Manufacturer Ohmite
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian HS503KF CAD Model

Description

The HS503KF is a wirewound resistor from Ohmite.

  • Resistance: 3 kΩ
  • Tolerance: 1%
  • Temperature Coefficient: 25 ppm/°C
  • Maximum Power Dissipation: 50 W
  • Lead Style: Solder
  • Length: 49.0982 mm
  • Width: 14.1986 mm
  • Height: 14.8082 mm
  • OEM Part: Yes
  • Alternative Parts: 41F3K0E, RS02B3K000FE12, 43F3K0E, 825F3K0, RS01A3K000FB12, and RS02B3K000FB12HS50 3K F
  • RoHS: Compliant
  • Supply and Demand Status: Shortage
