Same model may have multiple batches, images only for reference.

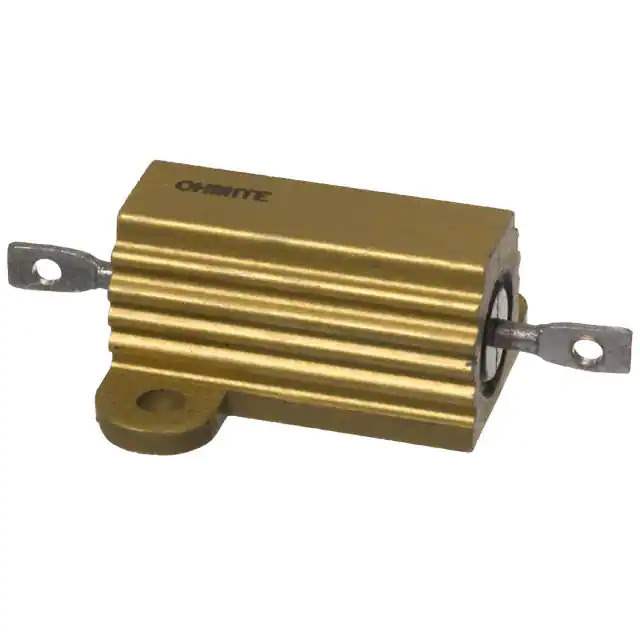

HS50 20R J Real Image
Same model may have multiple batches, images only for reference.

HS50 20R J

Part No HS50 20R J
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description RES CHAS MNT 20 OHM 5% 50W
Datasheet
HS50 20R J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Ohmite
Series ARCOL, HS
Package Bulk
Product Status Active
Resistance 20 Ohms
Tolerance ±5%
Power (Watts) 50W
Composition Wirewound
Temperature Coefficient ±100ppm/°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 1.933" L x 0.559" W (49.10mm x 14.20mm)
Height - Seated (Max) 0.583" (14.80mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Standard Package 40 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 873896-HS50 20R J
Ultra Librarian 3D Model Ultra Librarian HS50 20R J CAD Model

Description

The ARCOL HS series resistor is a wirewound chassis mount resistor designed for high power applications from ARCOL and is manufactured by Ohmite.

  • Power Rating: 50W
  • Resistance: 20 Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Case: Aluminum
  • Leads: Solder Lugs
  • Size: 1.933" L x 0.559" W
