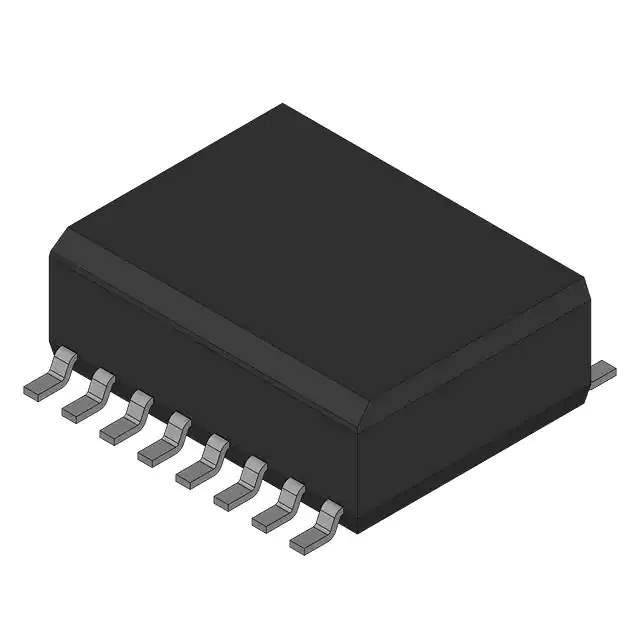

The TEA1753LT/N1 is a highly integrated circuit manufactured by NXP Semiconductors, designed to deliver efficient and robust solutions for switched mode power supplies (SMPS). As part of the GreenChip series, it is specifically engineered to meet the demands of energy-efficient power conversion in a wide range of applications, including adapters, LCD monitors, and power supplies for televisions and PCs.

Key Features

• High Efficiency: With its advanced control techniques, the TEA1753LT/N1 ensures optimal efficiency across different load conditions, significantly reducing energy consumption and heat generation.
• Multi-Mode Operation: The IC supports various modes of operation, including quasi-resonant, DCM (Discontinuous Conduction Mode), and burst mode, allowing for flexibility and improved efficiency under light-load conditions.
• Integrated Protection Features: The device comes with built-in protections such as OverVoltage Protection (OVP), OverPower Protection (OPP), and OverTemperature Protection (OTP), providing a reliable and safe power solution.
• Low Standby Power: It achieves low standby power consumption, making it ideal for applications that require compliance with energy-saving regulations.
• Frequency Modulation: To minimize Electromagnetic Interference (EMI), the IC offers frequency modulation, which helps in achieving better EMI performance without compromising efficiency.

Applications

The TEA1753LT/N1 is suitable for an array of power supply designs, particularly those where energy efficiency and compactness are critical. It is commonly used in:

• Notebook adapters
• Desktop PC power supplies
• Power supplies for LCD TVs and monitors
• Offline battery chargers

Environmental and Regulatory Compliance

Committed to environmental sustainability, the TEA1753LT/N1 complies with various international standards for energy efficiency and hazardous substances, including Energy Star and RoHS directives, ensuring minimal environmental impact.

With its combination of high efficiency, advanced control features, and robust protection mechanisms, the TEA1753LT/N1 stands out as a premier choice for designers seeking to create compact, energy-saving power supplies without compromising performance or safety.
