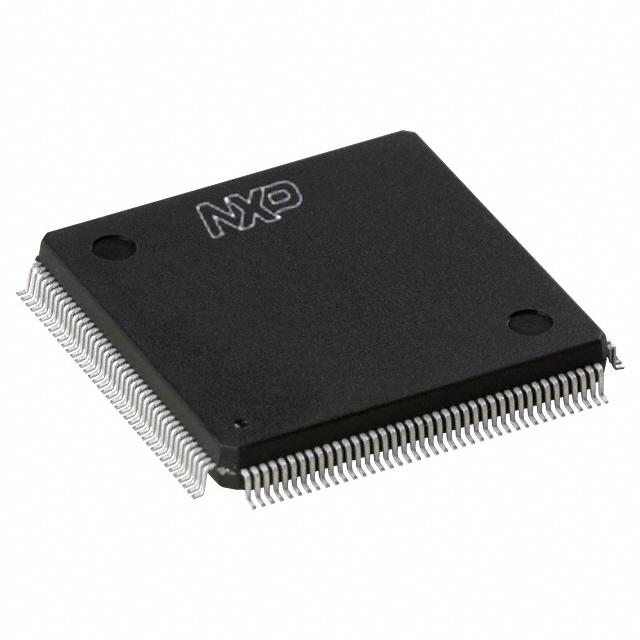

Introducing the SAA7118H Video Decoder by NXP

The SAA7118H is a highly integrated video decoder produced by NXP Semiconductors, designed to handle all tasks associated with the analog-to-digital conversion process of video signals. As a state-of-the-art solution, it is ideal for applications that require high-quality video decoding, such as digital TVs, DVD recorders, set-top boxes, multimedia PCs, and video surveillance systems.

Key Features

• Multi-Standard Support: The SAA7118H is capable of decoding a wide range of standard video formats, including NTSC, PAL, and SECAM. This makes it a versatile choice for global products.
• Advanced Signal Processing: Equipped with features such as comb filtering, gain control, and white peak control, the SAA7118H ensures the delivery of clear, sharp, and stable images.
• Multiple Input Channels: It supports up to 9 analog inputs, which can be configured as 6 composite video inputs, or 3 S-Video inputs, or a combination of both, providing flexibility in handling various video sources.
• Integrated Scaler: The built-in scaler allows for flexible picture sizing, enabling the chip to adapt to different display resolutions and aspect ratios.
• On-Chip Color Space Conversion: The SAA7118H can convert between various color spaces, such as YUV to RGB, making it compatible with different types of display technologies.

Technical Specifications

• 9-bit ADCs for high-quality video capture
• Macrovision copy protection detection
• Automatic gain control (AGC) for optimal signal quality
• Programmable horizontal and vertical scaling
• I2C-bus control for easy integration into system designs

The SAA7118H from NXP is not only a powerful video decoder but also a testament to NXP's commitment to providing cutting-edge technology for video applications. Its robust feature set and flexible design make it a top choice for developers looking to create high-performance video-centric solutions. Whether for consumer electronics or professional video systems, the SAA7118H offers the reliability and quality expected from a leading semiconductor manufacturer like NXP.
