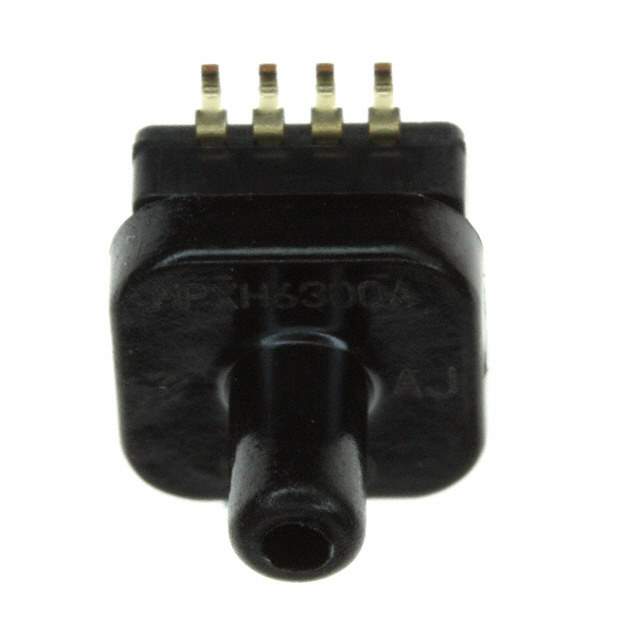

Product Overview: MPXH6300AC6T1 from NXP

The MPXH6300AC6T1 is a state-of-the-art integrated pressure sensor from NXP Semiconductors, designed to provide highly accurate and reliable pressure measurements. This sensor is part of NXP's MPX series, which is renowned for its robust performance in a variety of applications, including industrial controls, medical systems, and automotive systems.

Key Features

• Pressure Range: The MPXH6300AC6T1 is capable of measuring absolute pressure ranging from 20 to 300 kPa, making it versatile for a broad spectrum of applications.
• High Accuracy: It offers a high level of accuracy with a typical error of less than ±2.5% over its entire operating temperature range (-40°C to +125°C).
• Temperature Compensated: The sensor includes an onboard temperature compensation mechanism that ensures stable readings across its full temperature range.
• Calibrated: Each sensor is calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity, which significantly simplifies system integration and calibration at the user end.
• Analog Output: The MPXH6300AC6T1 provides a ratiometric analog output that varies linearly with the applied pressure. This analog output can easily interface with microcontrollers and other circuitry.
• Small Footprint: The sensor is housed in a small, surface-mount package, which is ideal for space-constrained applications.

Applications

The MPXH6300AC6T1 is suitable for a wide range of applications, including but not limited to:

• Automotive engine control systems
• Industrial process control
• Medical devices such as blood pressure monitors
• Pneumatic control systems
• Altitude and barometric pressure measurement

Conclusion

The MPXH6300AC6T1 from NXP is an excellent choice for developers looking for a reliable, accurate, and easy-to-use pressure sensor. Its robust design, coupled with its temperature compensation and calibration features, ensures that it delivers consistent performance for critical applications where precise pressure measurement is essential.
