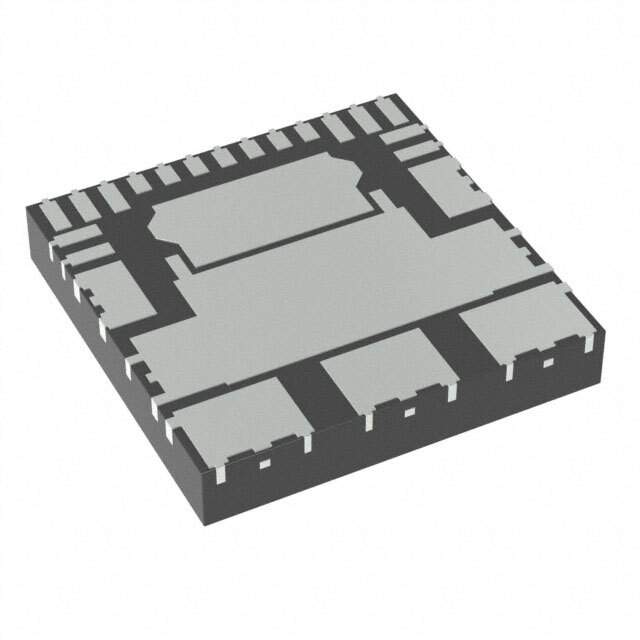

Introducing the MC35XS3500DHFKR2 from NXP Semiconductors

The MC35XS3500DHFKR2 is a high-performance system basis chip (SBC) designed by NXP Semiconductors, offering an integrated solution for automotive applications. This advanced product is tailored to meet the stringent requirements of the automotive industry, providing reliable and efficient control for a variety of automotive lighting and motor control systems.

Key Features

• High-Voltage Capability: The device operates at a nominal voltage of 12V, with the capacity to handle up to 28V, ensuring compatibility with standard automotive battery systems.
• Four High-Side Switches: It includes four high-side switches, which can deliver up to 35A of continuous current, making it suitable for driving high-power loads such as halogen headlamps, LED modules, and electric motors.
• Robust Protection Features: The MC35XS3500DHFKR2 comes with built-in protection against over-current, over-temperature, and under-voltage, safeguarding the system against common electrical faults.
• SPI Interface: For communication and control, it offers a Serial Peripheral Interface (SPI), enabling easy integration with microcontrollers and other digital systems.
• Diagnostic Functions: Enhanced diagnostic capabilities allow for real-time monitoring of the load current, voltage, and device temperature, facilitating preventative maintenance and fault detection.

Applications

The versatility of the MC35XS3500DHFKR2 makes it an ideal choice for a wide range of automotive applications, including:

• Headlight and rear light control
• Motor control for HVAC systems
• Power distribution modules
• Active grille shutter actuation

Quality and Reliability

As with all NXP products, the MC35XS3500DHFKR2 is manufactured to the highest quality standards. It is designed to withstand the harsh conditions of the automotive environment, ensuring long-term reliability and performance.

Whether you're designing a new automotive lighting system or upgrading an existing one, the MC35XS3500DHFKR2 by NXP provides a compact, efficient, and robust solution that will meet your needs.
