The NXP HEF4514BP is a high-performance CMOS (Complementary Metal-Oxide Semiconductor) integrated circuit that functions as a 4-to-16 line decoder or demultiplexer. This versatile component is designed for use in a wide range of digital applications, from automated control systems to complex computing devices. The HEF4514BP is part of the HEF4000 family, known for its robustness and compatibility with a variety of logic families.

This decoder/demultiplexer features four binary input lines that are decoded into one of sixteen mutually exclusive outputs. The outputs are active LOW, meaning that the selected output line will be pulled low when addressed by the inputs. The HEF4514BP includes two enable inputs (E1 and E2), which must be active HIGH for the device to operate. When either of the enable inputs is LOW, all outputs are inactive and remain in a high impedance state, which is ideal for interfacing with bus-oriented systems.

The HEF4514BP is designed with static operation in mind, ensuring that the output states are only dependent on the input conditions and not on the clock or timing signals. This makes the device particularly stable and reliable for static decoding tasks. It operates over a recommended voltage range of 3V to 15V, making it suitable for interfacing with both TTL (Transistor-Transistor Logic) and CMOS logic levels, and providing designers with a flexible choice in terms of power supply.

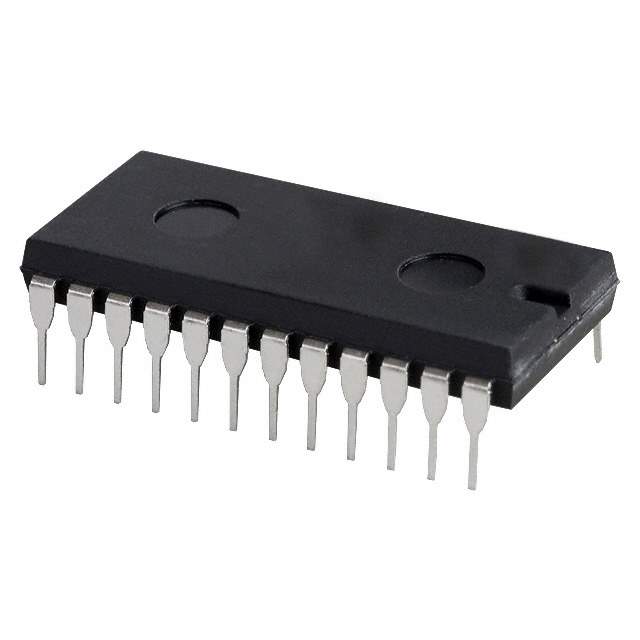

The device is packaged in a 24-pin DIP (Dual In-line Package), which is a common package type for easy insertion into standard breadboards and sockets. The HEF4514BP's pin configuration is arranged to facilitate simple circuit board layout and to minimize signal interference, ensuring optimal performance in a variety of settings.

In summary, the NXP HEF4514BP is a reliable and flexible solution for digital decoding applications. Its low power consumption, wide operating voltage range, and high noise immunity make it a solid choice for designers looking to create efficient and stable digital systems.
