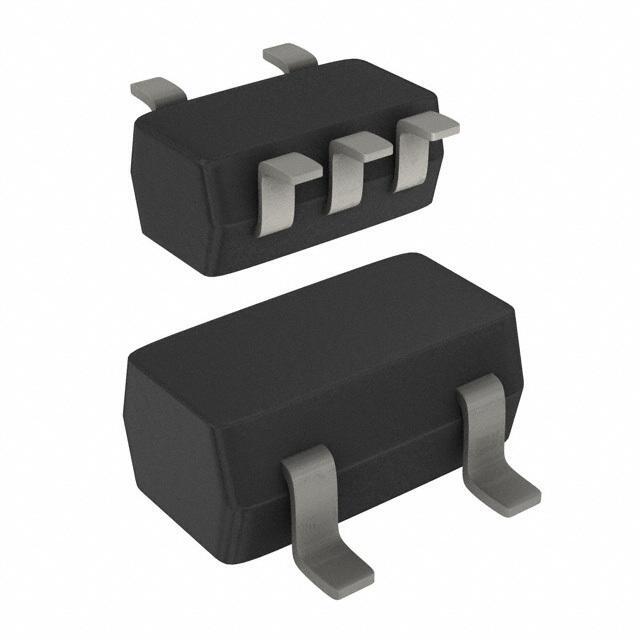

Product Overview: 74AUP1G07GW by NXP Semiconductors

The 74AUP1G07GW is a high-performance, low-power single buffer with open-drain output, part of the advanced ultra-low power (AUP) family of logic devices from NXP Semiconductors. This integrated circuit is designed for optimal operation in mobile phones, PDAs, and other battery-powered applications where power efficiency is critical.

With its ultra-low-power consumption and wide voltage range, the 74AUP1G07GW is engineered to support a variety of digital applications. It operates over a V_CC range of 0.8V to 3.6V, making it versatile for interfacing with both low-voltage and standard logic levels. This feature ensures compatibility with a broad spectrum of microcontrollers and other digital systems.

The open-drain output of this device allows for wired-OR logic configurations, which is useful for connecting multiple outputs to a common bus line without the need for external components. This simplifies design and can help reduce overall system cost and complexity.

Key features of the 74AUP1G07GW include:

• Low static power consumption (I_CC = 0.9 µA maximum)
• Low dynamic power consumption (C_PD = 4.3 pF typical)
• High noise immunity
• Wide supply voltage range from 0.8V to 3.6V
• ESD protection exceeds JESD 22
• Inputs accept voltages up to 3.6V
• Low output capacitance
• Available in a very small, leadless 6-pin package (TSSOP6)

The 74AUP1G07GW's robust ESD protection ensures the device's reliability and longevity in harsh electrical environments. Its small form factor is ideal for space-constrained applications, and the leadless package allows for improved PCB space utilization.

In summary, the NXP's 74AUP1G07GW is a smart choice for designers looking for a low-power, high-performance logic solution. Its open-drain output, low power consumption, and wide operating voltage range make it a versatile component suitable for a wide array of digital applications.
