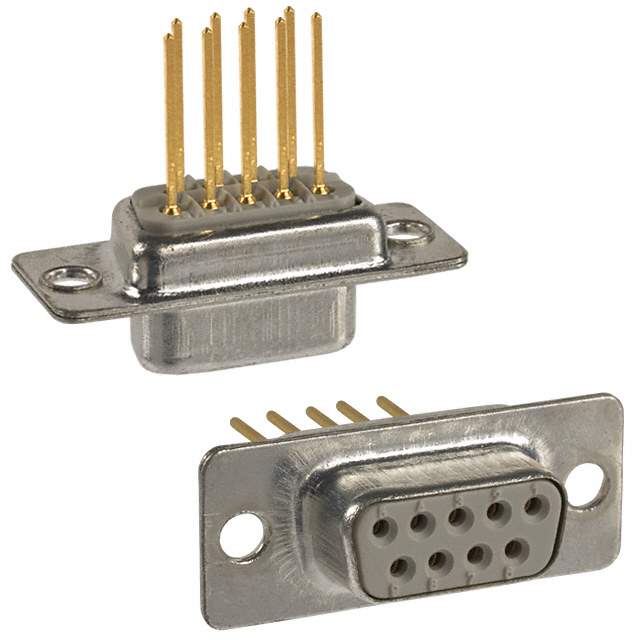

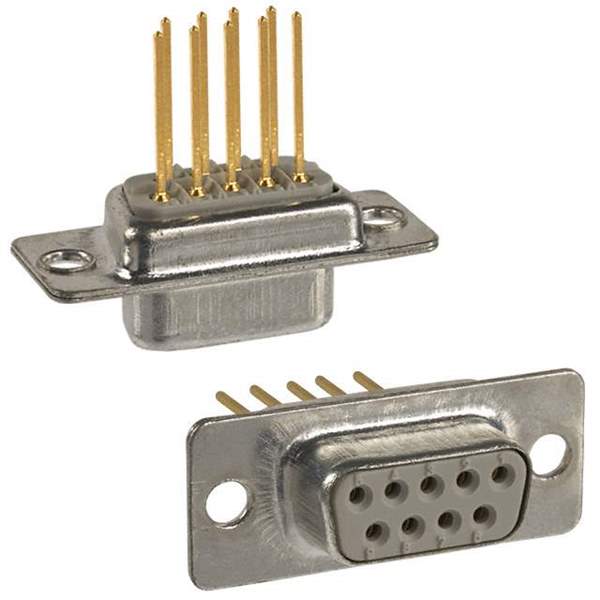

172-009-242R001 Real Image
Same model may have multiple batches, images only for reference.

172-009-242R001

Part No 172-009-242R001
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS PNL MNT WW / 9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
172-009-242R001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series 172, M Series
Package Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Wire Wrap
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Color Beige
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT) , Polyester
Contact Material Brass
Temperature Range - Operating -50°C ~ 100°C
Base Product Number 172-009
Standard Package 40
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1338845-172-009-242R001
Ultra Librarian 3D Model Ultra Librarian 172-009-242R001 CAD Model

Description

The 172-009-242R001 D-Sub connector assembly is a high-performance device designed for a wide range of applications.

  • Number of Positions: 9
  • Contact Gender: Female Socket
  • Contact Type: Signal
  • Termination Type: Wire Wrap
  • Contact Finish: Gold with Flash Contact Finish Thickness
  • Number of Rows: 2
  • Shell Material, Finish: Steel, Tin-Plated
  • Flange Feature: Housing/Shell (Unthreaded)
  • Shell Size, Connector Layout: 1 (DE, E)
  • Current Rating: 5A
  • Operating Temperature: -50°C ~ 100°C
  • Mounting Type: Panel Mounting, Through-Hole Mounting
  • Manufacturer: NorComp Inc.
