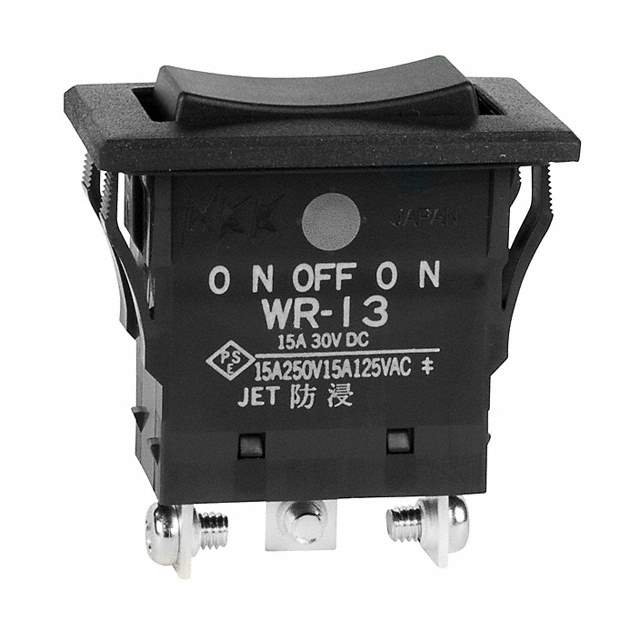

WR13AT Real Image1 WR13AT Real Image2
Same model may have multiple batches, images only for reference.
WR13AT Real Image1 WR13AT Real Image2
WR13AT Real Image1 WR13AT Real Image2
Same model may have multiple batches, images only for reference.

WR13AT

Part No WR13AT
Manufacturer NKK Switches
Catalog Rocker Switches
Description SWITCH ROCKER SPDT 15A 125V / Rocker Switch SPDT 15A (AC/DC) 125 V Panel Mount, Snap-In
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr NKK Switches
Series WR
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit SPDT
Switch Function On-Off-On
Current Rating (Amps) 15A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking No Marking
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Rectangular - 34.20mm x 17.20mm
Temperature Range - Operating -25°C ~ 85°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Standard Package 1 pcs
Win Source Part Number 1383863-WR13AT
Ultra Librarian 3D Model Ultra Librarian WR13AT CAD Model

Description

The 1383863-WR13AT is a rocker switch from the WR series. 1383863-WR13AT, NKK Switches.

  • Termination Style: Screw Terminal
  • Terminal Seal: Epoxy Sealed
  • Ingress Protection: IP67
  • Voltage Rating - AC: 125V AC
  • Voltage Rating - DC: 30V DC
  • Circuit: SPDT
  • Switch Function: On-Off-On
  • Actuator Type: Concave (Curved)
  • Electrical Life: 10,000 Cycles
  • Mounting Type: Panel Mount, Snap-In
  • Operating Temperature: -25°C ~ 85°C
