Same model may have multiple batches, images only for reference.

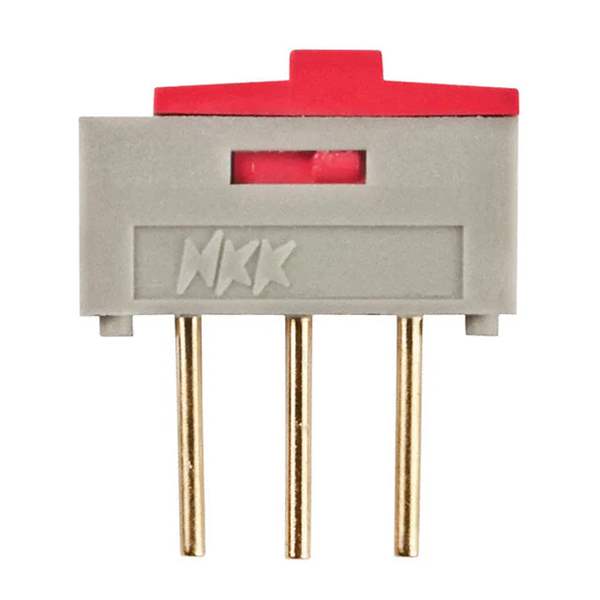

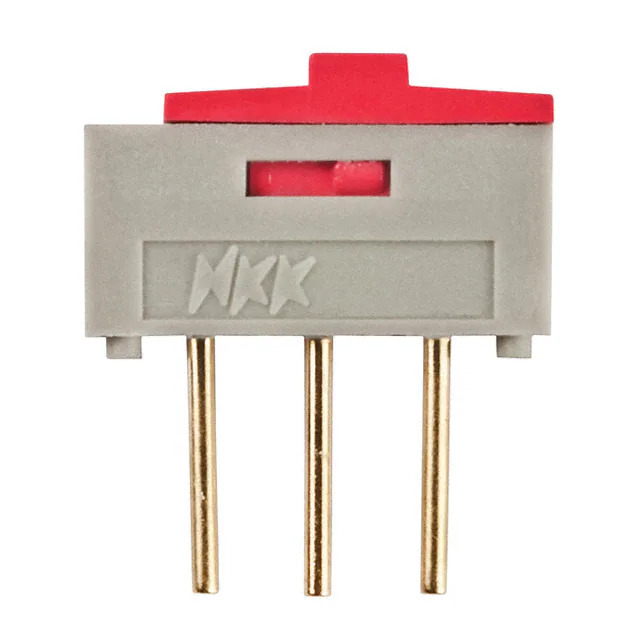

SM0320102 NKK Switches
Same model may have multiple batches, images only for reference.

SM0320102

Part No SM0320102
Manufacturer NKK Switches
Catalog Slide Switches
Description SWITCH SLIDE SPDT 500MA 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr NKK Switches
Series SM
Package Bulk
Product Status Active
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 500mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 1.40mm
Contact Material Brass
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features -
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyester, Glass Filled
Switch Travel 1.60mm
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Operating Force 204gf
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376323-SM0320102
Ultra Librarian 3D Model Ultra Librarian SM0320102 CAD Model

Description

The NKK Switches SM series slide switch is a compact and durable electronic component suitable for various applications.

  • Manufacturer: NKK Switches
  • Current Rating (DC): 500mA
  • Voltage Rating (DC): 12V DC
  • Circuit: SPDT
  • Switch Function: On-On
  • Actuator Type: Standard
  • Termination Style: PC Pin
  • Mounting Type: Through Hole
  • Mechanical Life: 1,000 cycles
  • Electrical Life: 1,000 cycles
