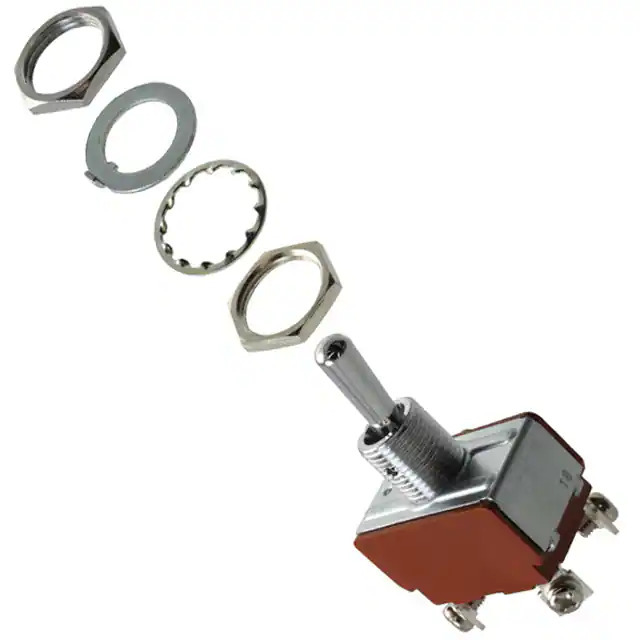

S331T NKK Switches
Same model may have multiple batches, images only for reference.

S331T

Part No S331T
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE DPST 15A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series S300
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 15A (AC), 20A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Ingress Protection -
Features -
Temperature Range - Operating -10°C ~ 70°C
Actuator Material Brass, Chrome Plated
Electrical Life 15,000 Cycles
Base Product Number -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376014-S331T
Ultra Librarian 3D Model Ultra Librarian S331T CAD Model

Description

The S331T is a panel mount toggle switch from NKK Switches.

  • Series: S300
  • Mounting Type: Panel Mount
  • Current Rating (AC): 15A (AC)
  • Current Rating (DC): 20A (DC)
  • Voltage Rating (AC): 125V AC
  • Voltage Rating (DC): 30V DC
  • Circuit: DPST
  • Switch Function: On-Off
  • Termination Style: Screw Terminal
  • Panel Cutout Dimensions: Circular, 12.50mm diameter
