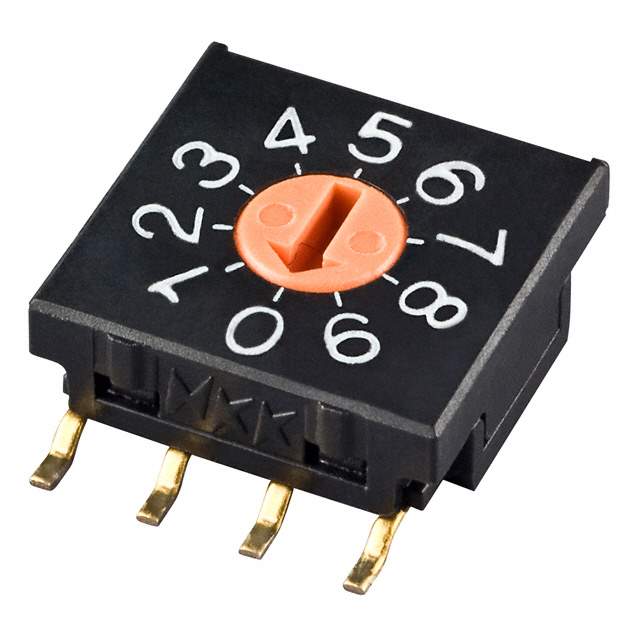

Same model may have multiple batches, images only for reference.

FR02FR10P-R

Name: FR02FR10P-R
Brand: NKK Switches
SKU: 592866
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FR02FR10P-R
Manufacturer	NKK Switches
Catalog	DIP Switches
Description	10mm Ultra-Thin SMT DIP Rotaries \| SWITCH ROTARY DIP BCD 100MA 5V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Switches
Manufacturer	NKK Switches
Packaging	Reel
Circuit	BCD
Number of Positions	10
Current Rating (Amps)	100mA
Voltage Rating	5VDC
Actuator Type	Rotary for Tool
Actuator Level	Flush, Recessed
Contact Material	Copper Alloy
Contact Finish	Gold
Height Above Board	0.154" (3.90mm)
Mounting Style	SMD
Termination Style	Gull Wing
Pitch	0.100" (2.54mm), Full
Washable	No
Temperature Range - Operating	-25°C ~ 85°C
Body Material	Polyamide (PA), Nylon, Glass Filled
Length	0.393" (10.00mm)
Mechanical Life	10,000 Steps
Electrical Life	10,000 Steps
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1175554-FR02FR10P-R
Manufacturer Homepage	www.nkkswitches.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian FR02FR10P-R CAD Model

Alternative Products

Description

The NKK Switches BCD Rotary Switch is a high-quality switch that is perfect for various applications.

Positions: 10
Pitch: 0.100" (2.54mm), full
Termination Style: Gull wing
Mounting Style: SMD
Contact Finish: Gold
Contact Material: Copper alloy
Voltage Rating: 5VDC
Height Above Board: 0.154" (3.90mm)
Length: 0.393" (10.00mm)
Body Material: Polyamide (PA), nylon, glass filled
Circuit: BCD
Actuator Type: Rotary for tool
Electrical Life: 10,000 steps
Mechanical Life: 10,000 steps
Actuator Level: Flush, recessed
Washable: No
Popularity: Medium
Supply and Demand Status: Limited
