Same model may have multiple batches, images only for reference.

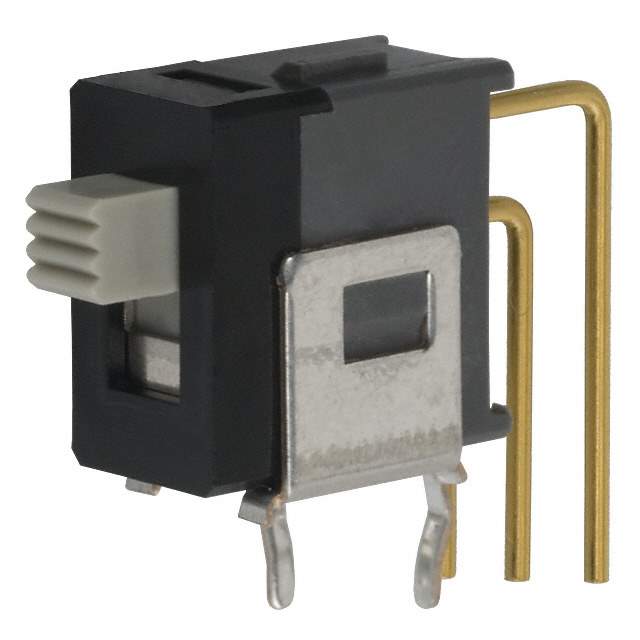

AS12AV Real Image
Same model may have multiple batches, images only for reference.

AS12AV

Part No AS12AV
Manufacturer NKK Switches
Catalog Slide Switches
Description SWITCH SLIDE SPDT 0.4VA 28V / Slide Switch SPDT Through Hole, Right Angle, Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr NKK Switches
Series AS
Package Tray
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Standard
Actuator Length 2.50mm
Contact Material Phosphor Bronze
Contact Finish Gold
Mounting Type Through Hole, Right Angle, Vertical
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Polyamide (PA), Nylon, Glass Filled
Switch Travel 2.50mm
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Operating Force 260gf
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
California Prop 65 Warning Information
Standard Package 1 pcs
Win Source Part Number 1381449-AS12AV
Ultra Librarian 3D Model Ultra Librarian AS12AV CAD Model

Description

The 1381449-AS12AV is a slide switch from the AS series by NKK Switches.

  • Series: AS
  • Circuit: SPDT
  • Switch Function: On-On
  • Contact Finish: Gold
  • Termination Style: PC Pin
  • Voltage Rating - AC: 28V
  • Voltage Rating - DC: 28V
  • Features: Sealed - Epoxy
  • Actuator Length: 2.50mm
  • Travel: 2.50mm
  • Electrical Life: 50,000 Cycles
  • Operating Force: 260gf
  • Mounting Type: Through Hole
  • Orientation: Vertical or Right Angle
  • Operating Temperature: -30°C ~ 85°C
