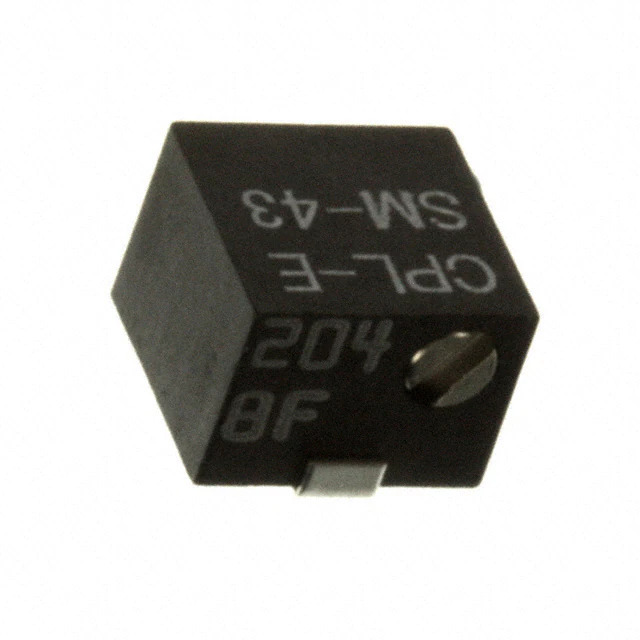

Same model may have multiple batches, images only for reference.
SM-43TW101 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

SM-43TW101

Part No SM-43TW101
Manufacturer Nidec Copal Electronics
Catalog Trimmer Potentiometers
Description TRIMMER 100 OHM 0.25W J LEAD TOP
Datasheet
SM-43TW101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Nidec Components Corporation
Series SM43
Package Tape & Reel
Product Status Active
Resistance 100 Ohms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 5
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1375057-SM-43TW101
Ultra Librarian 3D Model Ultra Librarian SM-43TW101 CAD Model

Description

The SM43TW101 is a surface mount trimmer potentiometer manufactured by Nidec Components Corporation.

  • Series: SM43
  • Mounting Type: Surface Mount
  • Resistance: 100 Ohms
  • Tolerance: ±10%
  • Power Rating: 0.25W
  • Turns: 5
  • Resistive Material: Cermet
  • Temperature Coefficient: ±100ppm/°C
  • Size: 0.189" x 0.138" (4.80mm x 3.50mm)
