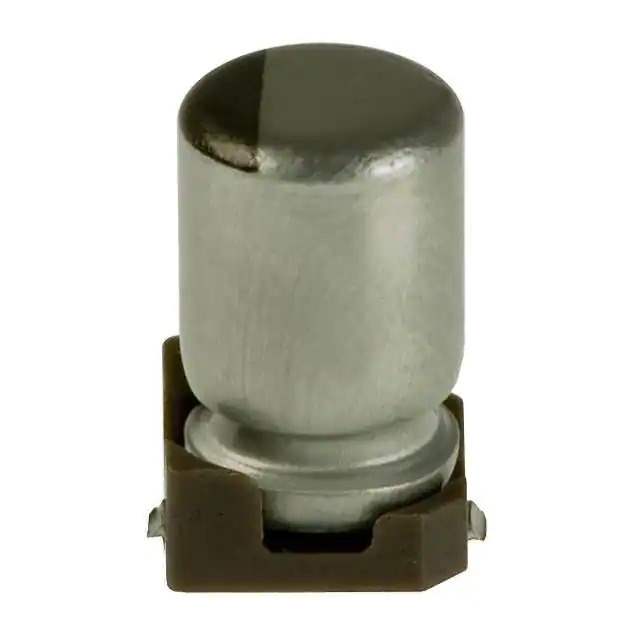

UWX1H010MCL2GB Real Image
Same model may have multiple batches, images only for reference.

UWX1H010MCL2GB

Part No UWX1H010MCL2GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1UF 20% 50V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWX
Package Tape & Reel
Product Status Obsolete
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 8 mA @ 120 Hz
Ripple Current @ High Frequency 12 mA @ 10 kHz
Size / Dimension 0.118" Dia (3.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.130" L x 0.130" W (3.30mm x 3.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 845642-UWX1H010MCL2GB
Ultra Librarian 3D Model Ultra Librarian UWX1H010MCL2GB CAD Model

Description

The UWX series aluminum electrolytic capacitor by Nichicon is a compact and reliable component for your electronic circuits.

  • Capacitance: 1 µF
  • Voltage Rating: 50V
  • Size: 0.118" (3.00mm) Diameter
  • Height: 0.213" (5.40mm)
  • Mounting Type: Surface Mount
  • Polarization: Polarized
  • Lifetime: 2000 hours @ 85°C
  • Product Status: Obsolete
