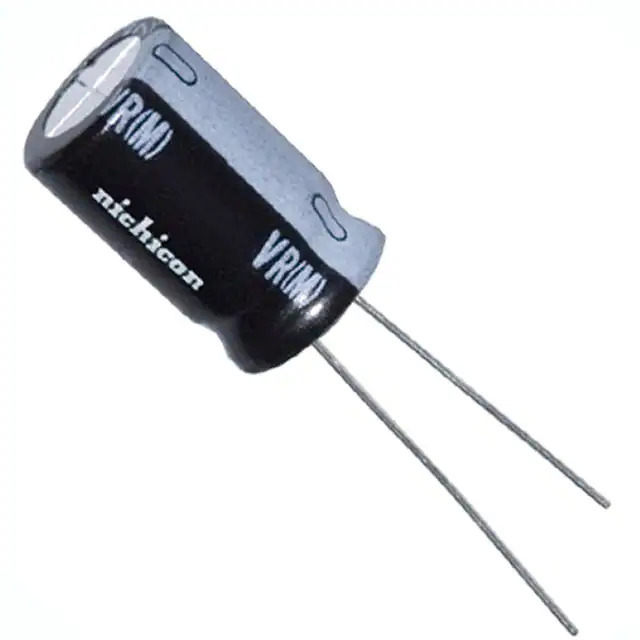

Same model may have multiple batches, images only for reference.

UVR1V102MHD

Name: UVR1V102MHD
Brand: Nichicon
SKU: 1355732
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UVR1V102MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 35V RADIAL / 1000 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVR
Package	Bulk
Product Status	Not For New Designs
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.15 A @ 120 Hz
Ripple Current @ High Frequency	1.3225 A @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1355732-UVR1V102MHD
Ultra Librarian 3D Model	Ultra Librarian UVR1V102MHD CAD Model

Description

The Nichicon UVR1V102MHD is a radial aluminum electrolytic capacitor with a capacitance of 1000 µF and a voltage rating of 35 V.

Capacitance: 1000 µF
Voltage Rating: 35 V
Tolerance: ±20%
Ripple Current @ 120 Hz: 1.15 A
Ripple Current @ 10 kHz: 1.3225 A
Lead Spacing: 0.197" (5.00mm)
Size/Dimension: 0.492" Dia (12.50mm)
Mounting Type: Through Hole
Height: 0.866" (22.00mm)
Lifetime: 2000 hours @ 85°C
