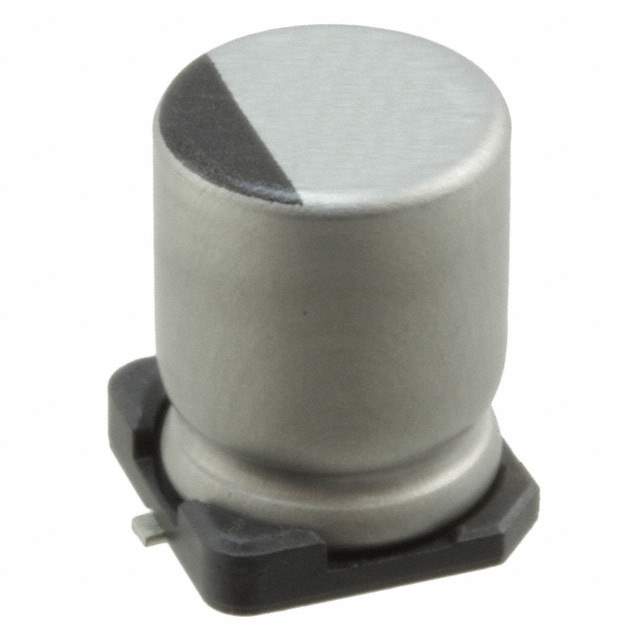

Same model may have multiple batches, images only for reference.

UUR2A100MNL1GS

Name: UUR2A100MNL1GS
Brand: Nichicon
SKU: 1352150
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UUR2A100MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 100V SMD / 10 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet	UUR2A100MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UUR
Package	Tape & Reel
Product Status	Last Time Buy
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Applications	General Purpose
Ripple Current @ Low Frequency	77 mA @ 120 Hz
Ripple Current @ High Frequency	128.59 mA @ 10 kHz
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1352150-UUR2A100MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UUR2A100MNL1GS CAD Model

Description

The UUR series aluminum electrolytic capacitor is a general-purpose capacitor that is commonly used in electronic devices.

Capacitance: 10 µF
Voltage Rating: 100 V
Tolerance: ±20%
ESR (Equivalent Series Resistance): 0
Package: Radial, Can - SMD
Size: 0.315" Dia (8.00mm)
Mounting Type: Surface Mount
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
Lifetime: 2000 Hours @ 85°C
Operating Temperature: -40°C to 85°C
Manufacturer: Nichicon
Status: Last Time Buy
Ripple Current: 77 mA @ 120 Hz (low frequency)
Ripple Current: 128.59 mA @ 10 kHz (high frequency)
