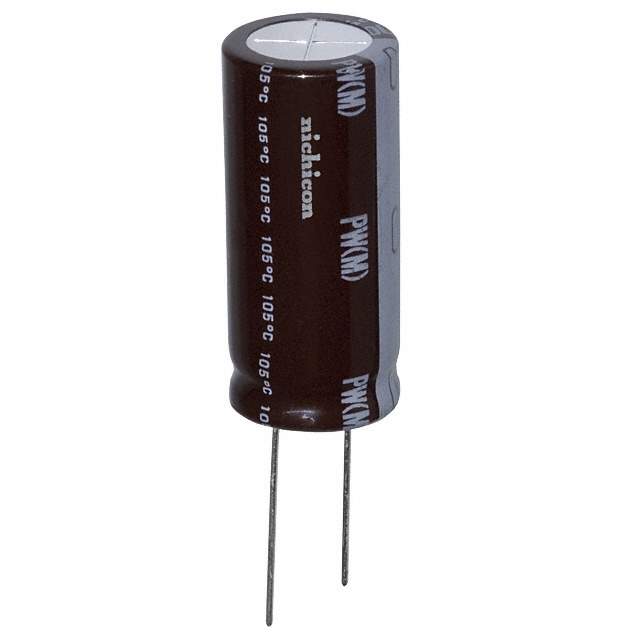

UPW2A102MHD

Part No UPW2A102MHD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Not For New Designs
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.14 A @ 120 Hz
Ripple Current @ High Frequency 1.52 A @ 100 kHz
Impedance 47 mOhms
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.575" (40.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Other Names Q4160950,493-1988,Q4160950A
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307341-UPW2A102MHD
Ultra Librarian 3D Model Ultra Librarian UPW2A102MHD CAD Model

Description

UPW2A102MHD from Nichicon is an aluminum capacitor used in designs that need dependable bulk capacitance, filtering, or energy buffering in power-related circuits. Engineers commonly consider parts in this category for power supplies, industrial controls, consumer electronics, telecom hardware, and general-purpose board-level decoupling where stable capacitor sourcing and recognized manufacturer quality are important. As a Nichicon device, this part is positioned for designers and buyers seeking a widely recognized brand in the aluminum capacitor market, especially for maintenance, repair, and ongoing production support. The current lifecycle status for UPW2A102MHD is information not available, so design teams should confirm latest manufacturer status before committing to new programs or long-term builds. RoHS compliance information is also not available from the provided data. For compliance-sensitive applications, engineers and procurement teams should verify the latest datasheet, material declaration, and manufacturer compliance statement before release to production.
