UPJ2A2R2MDD1TD Nichicon – Price, Stock & Datasheet

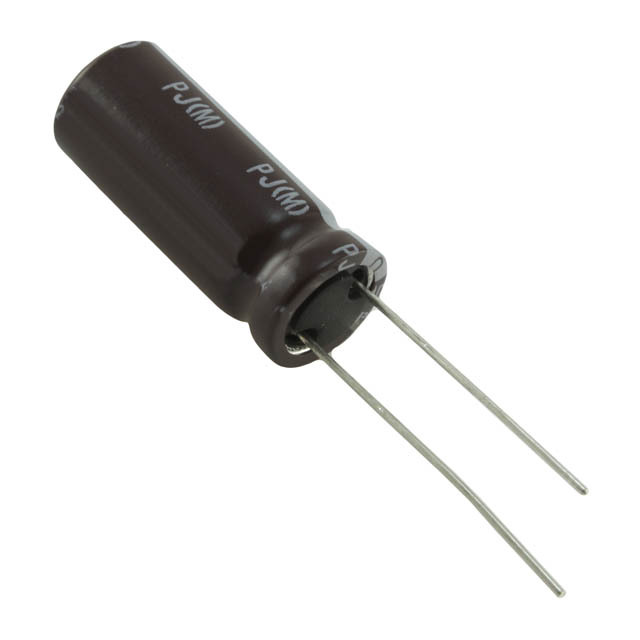

Same model may have multiple batches, images only for reference.

UPJ2A2R2MDD1TD

Part No UPJ2A2R2MDD1TD
Manufacturer Nichicon
Catalog Aluminum Electrolytic Capacitors
Description CAP ALUM 2.2UF 20% 100V RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category CapacitorsAluminum Electrolytic Capacitors
Mfr Nichicon
Series UPJ
Packaging Cut Tape (CT)Tape & Box (TB)
Part Status Obsolete
Capacitance 2.2 μF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 21 mA @ 120 Hz
Ripple Current @ High Frequency 43 mA @ 10 kHz
Impedance 6.6 Ohms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Ultra Librarian 3D Model Ultra Librarian UPJ2A2R2MDD1TD CAD Model
