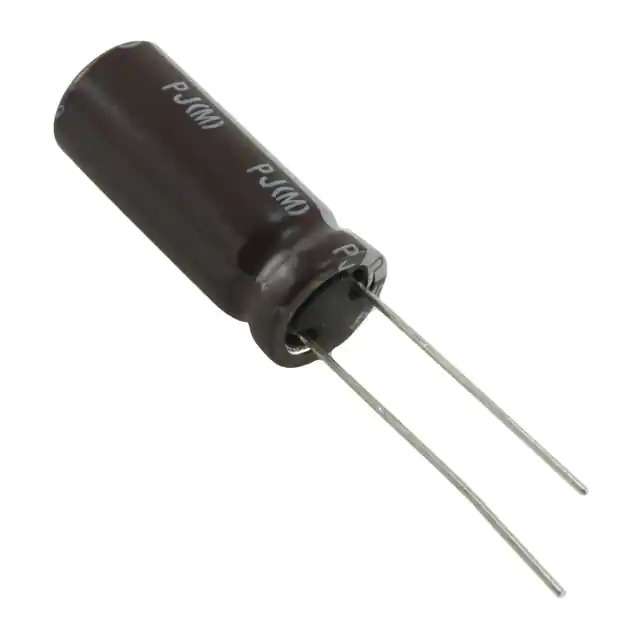

Same model may have multiple batches, images only for reference.

UPJ1H100MDD

Name: UPJ1H100MDD
Brand: Nichicon
SKU: 1358085
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPJ1H100MDD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 50V RADIAL / 10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	UPJ1H100MDD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPJ
Package	Bulk
Product Status	Obsolete
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	57 mA @ 120 Hz
Ripple Current @ High Frequency	115 mA @ 10 kHz
Impedance	2 Ohms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358085-UPJ1H100MDD
Ultra Librarian 3D Model	Ultra Librarian UPJ1H100MDD CAD Model

Description

The UPJ series aluminum electrolytic capacitor is a high-quality component manufactured by Nichicon.

Series: UPJ
Capacitance: 10 μF
Voltage Rating: 50 V
Tolerance: ±20%
Ripple Current (Low Frequency): 57 mA @ 120 Hz
Ripple Current (High Frequency): 115 mA @ 10 kHz
Lead Spacing: 0.079" (2.00mm)
Size: 0.197" (5.00mm) Diameter
Mounting Type: Through-Hole
Height: 0.472" (12.00mm)
Lifetime: 2000 hours @ a maximum temperature of 105°C
Polarization: Polarized
Impedance: 2 Ohms
Product Status: Obsolete
REACH Status: Unaffected
ECCN: EAR99
