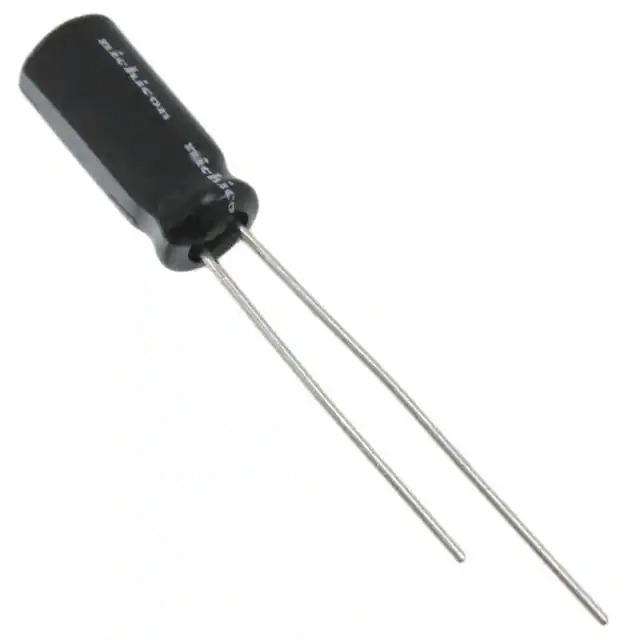

UHE1E470MDD1TD Nichicon
Same model may have multiple batches, images only for reference.

UHE1E470MDD1TD

Part No UHE1E470MDD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 25V RADIAL / 47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet
UHE1E470MDD1TD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Product Status Obsolete
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 147 mA @ 120 Hz
Ripple Current @ High Frequency 210 mA @ 100 kHz
Impedance 580 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358225-UHE1E470MDD1TD
Ultra Librarian 3D Model Ultra Librarian UHE1E470MDD1TD CAD Model

Description

The 1358225-UHE1E470MDD1TD is a radial, can-type aluminum electrolytic capacitor manufactured by Nichicon.

  • Capacitance: 47 µF
  • Voltage: 25 V
  • Temperature Range: -40°C to 105°C
  • Ripple Current (120 Hz): 147 mA
  • Ripple Current (100 kHz): 210 mA
  • Lead Spacing: 0.098" (2.50mm)
  • Diameter: 0.197" (5.00mm)
  • Height: 0.492" (12.50mm)
  • Mounting Type: Through Hole
  • Packaging: Bulk
  • Lifetime: 5000 Hours @ 105°C
  • REACH: Unaffected
  • Status: Obsolete
