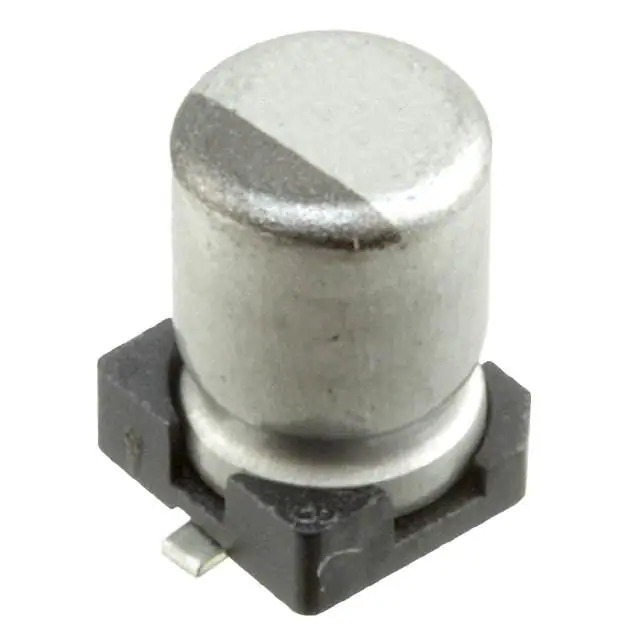

Same model may have multiple batches, images only for reference.

UCD1A220MCL1GS

Name: UCD1A220MCL1GS
Brand: Nichicon
SKU: 1354010
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD1A220MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 10V SMD / 22 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCD1A220MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Product Status	Active
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	10 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	45 mA @ 120 Hz
Ripple Current @ High Frequency	90 mA @ 100 kHz
Impedance	1.35 Ohms
Lead Spacing	-
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1354010-UCD1A220MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UCD1A220MCL1GS CAD Model

Description

The UCD series from Nichicon is a range of aluminum electrolytic capacitors that are designed to provide reliable performance in electronic circuits.

Mounting Type: Surface Mountable
Package: Radial, Can - SMD
Diameter: 0.157" (4.00mm)
Height: 0.240" (6.10mm)
Capacitance: 22μF
Voltage Rating: 10V
Tolerance: ±20%
Ripple Current (120Hz): 45mA
Ripple Current (100kHz): 90mA
REACH: Unaffected
ECCN: EAR99
Series: UCD
Status: Active
